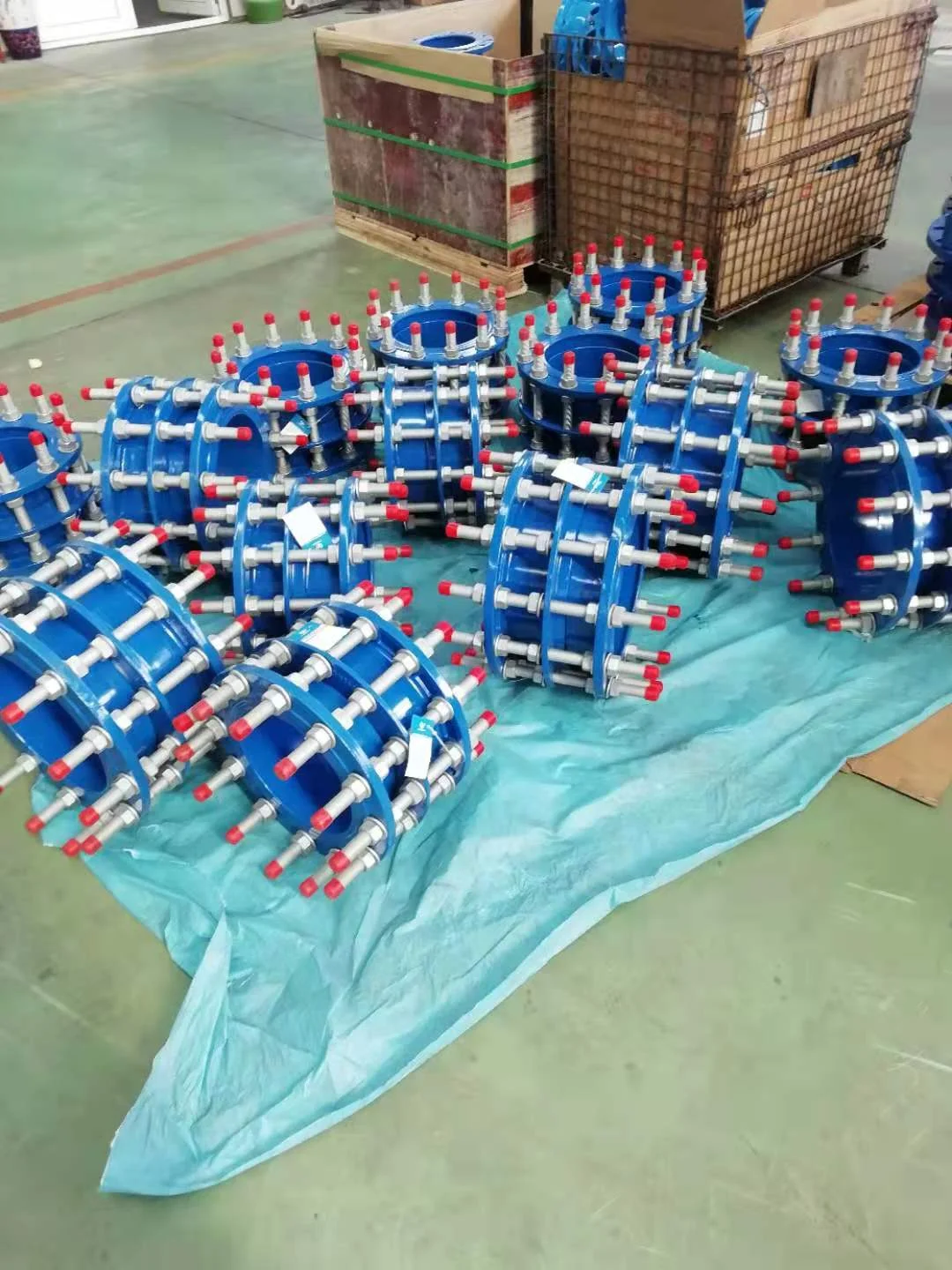

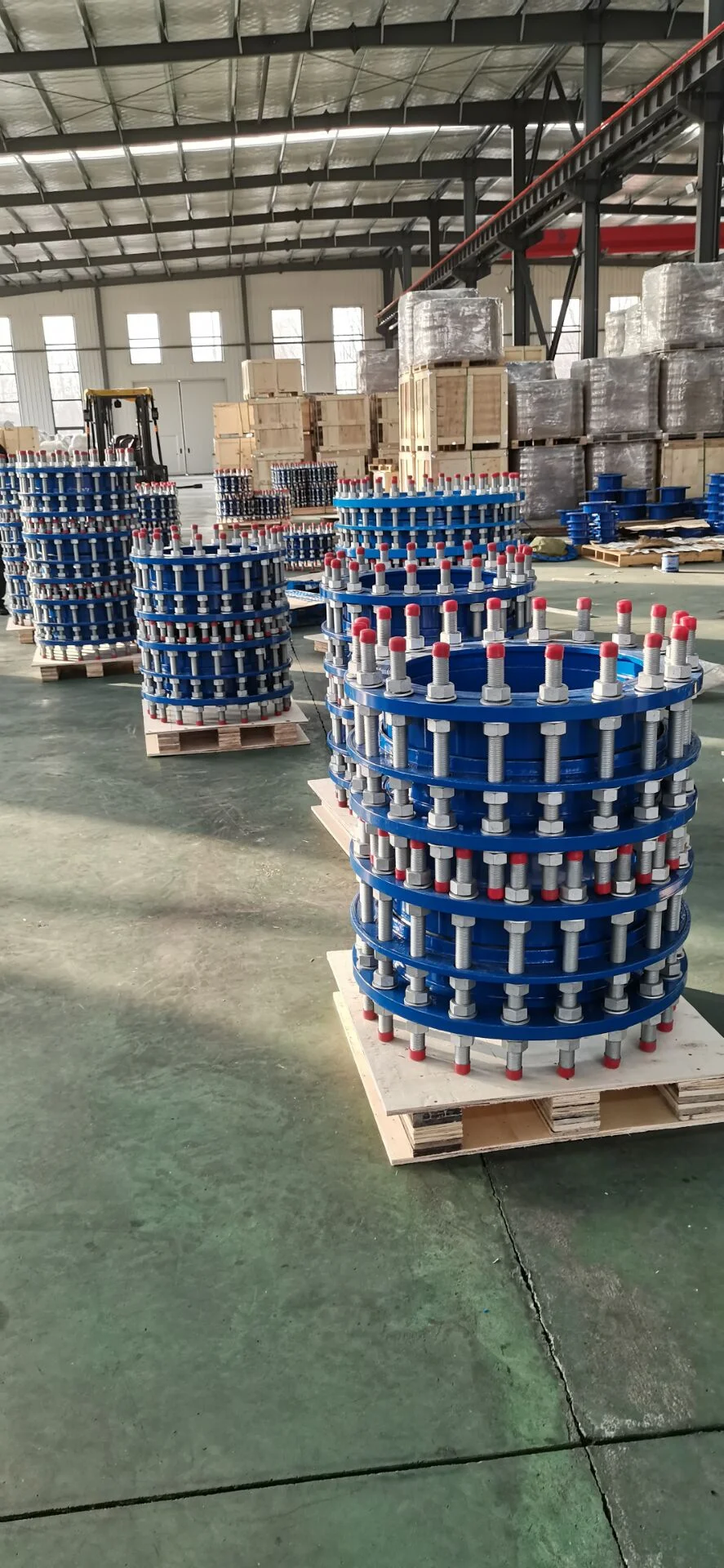

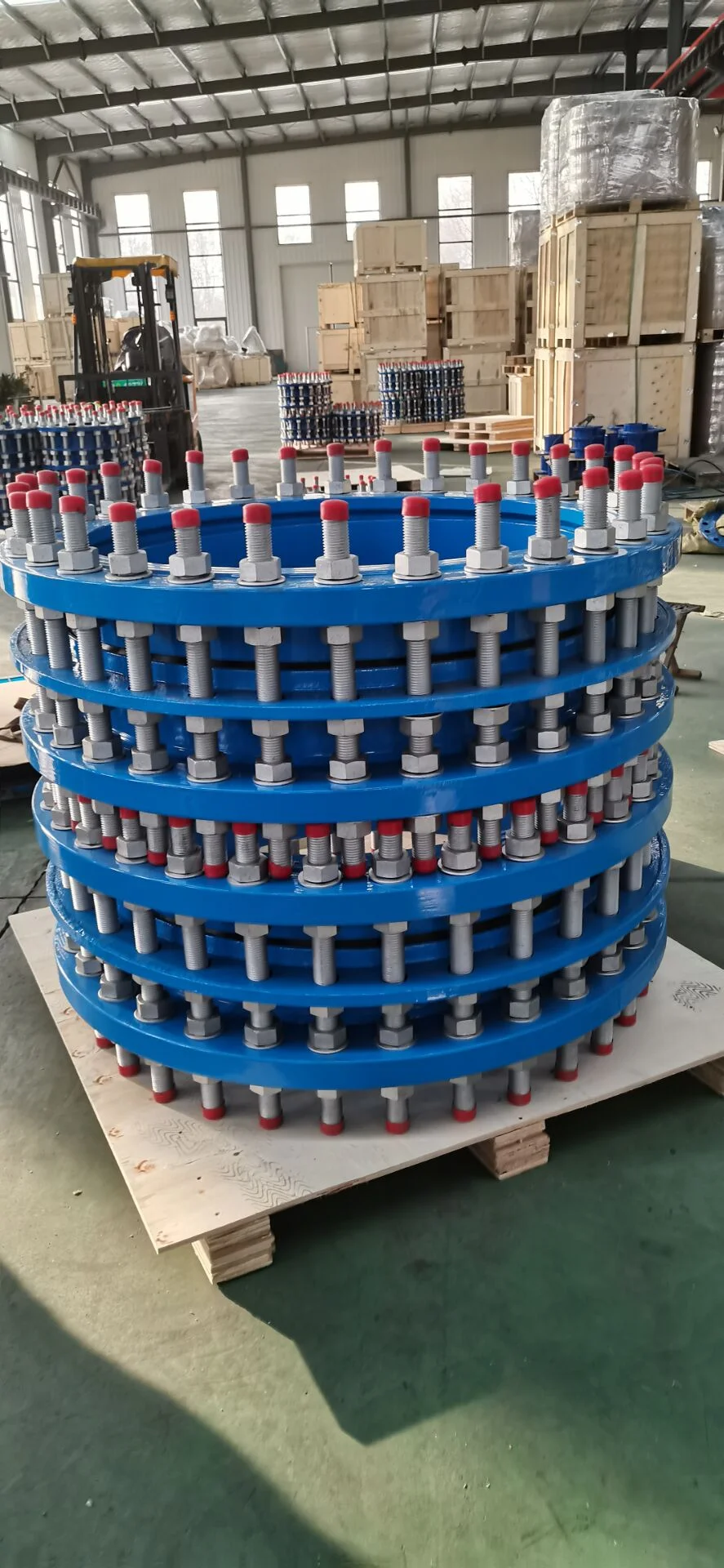

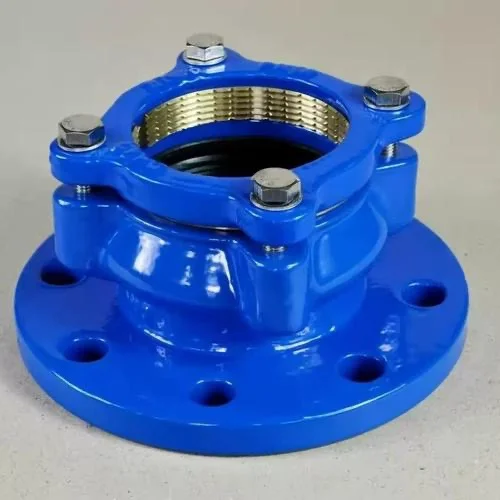

Dismantling Joint
The Dismantling Joint is designed to facilitate the easy removal and installation of valves, meters, and other pipeline equipment. It provides longitudinal adjustability, allowing for simple maintenance and replacement without disturbing the entire pipeline. Essential for water treatment plants, pumping stations, and industrial facilities.
Technical Specifications
- Size Range: DN50 - DN2000
- Pressure Rating: PN10, PN16, PN25
- Material: Ductile iron, Cast iron, Carbon steel
- Adjustment: 50-100mm axial movement
- Standard: EN 545, ISO 2531
- Application: Valve installation, Pipeline maintenance

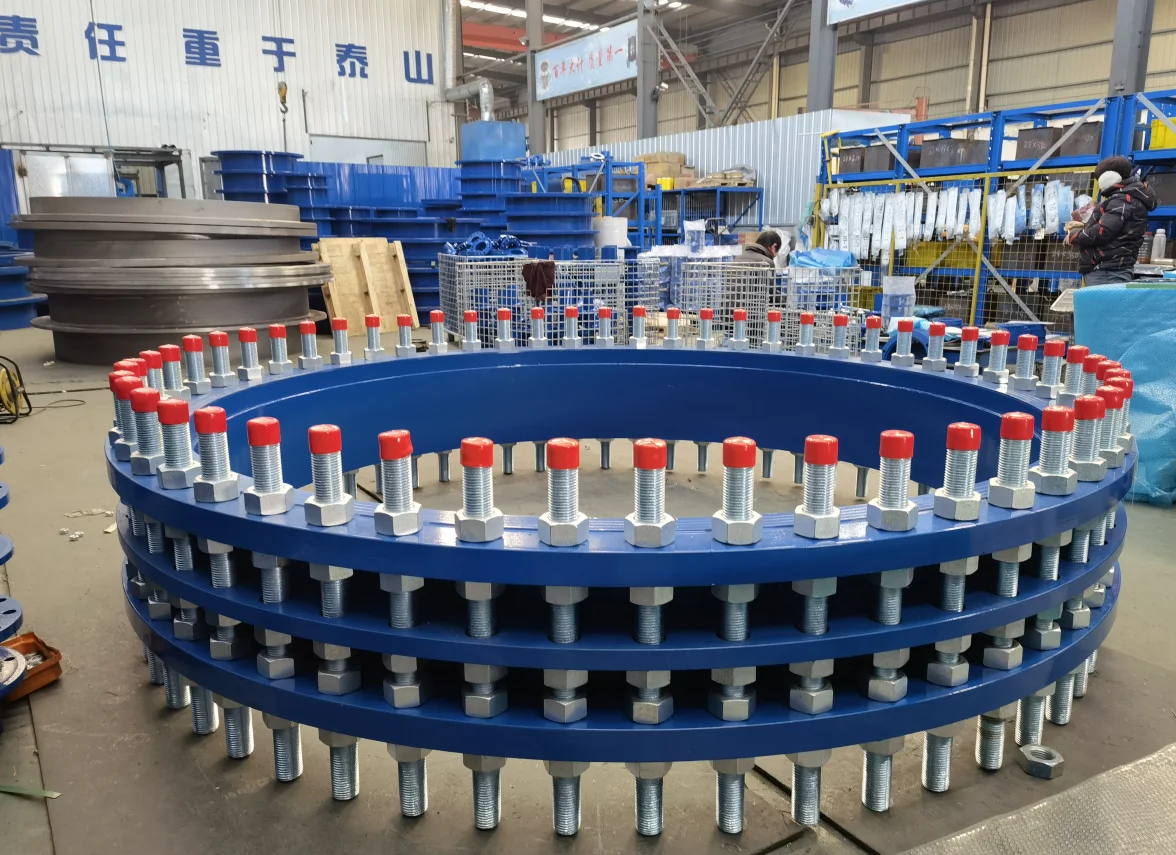

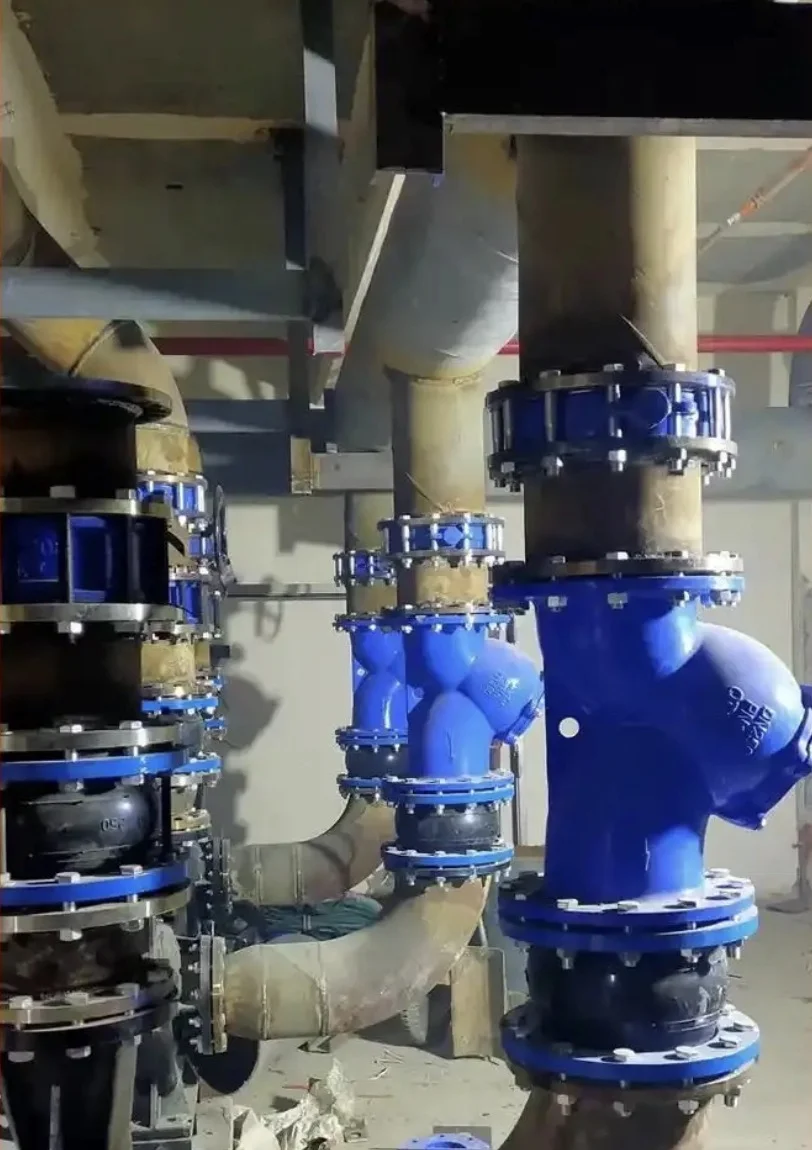

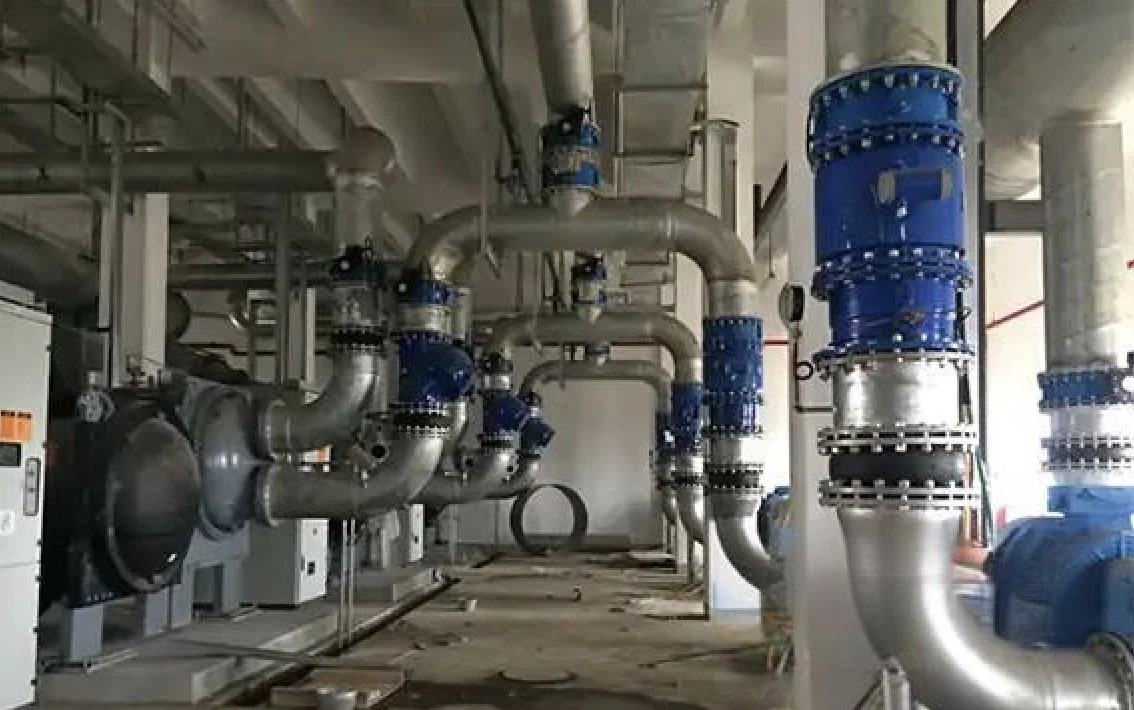

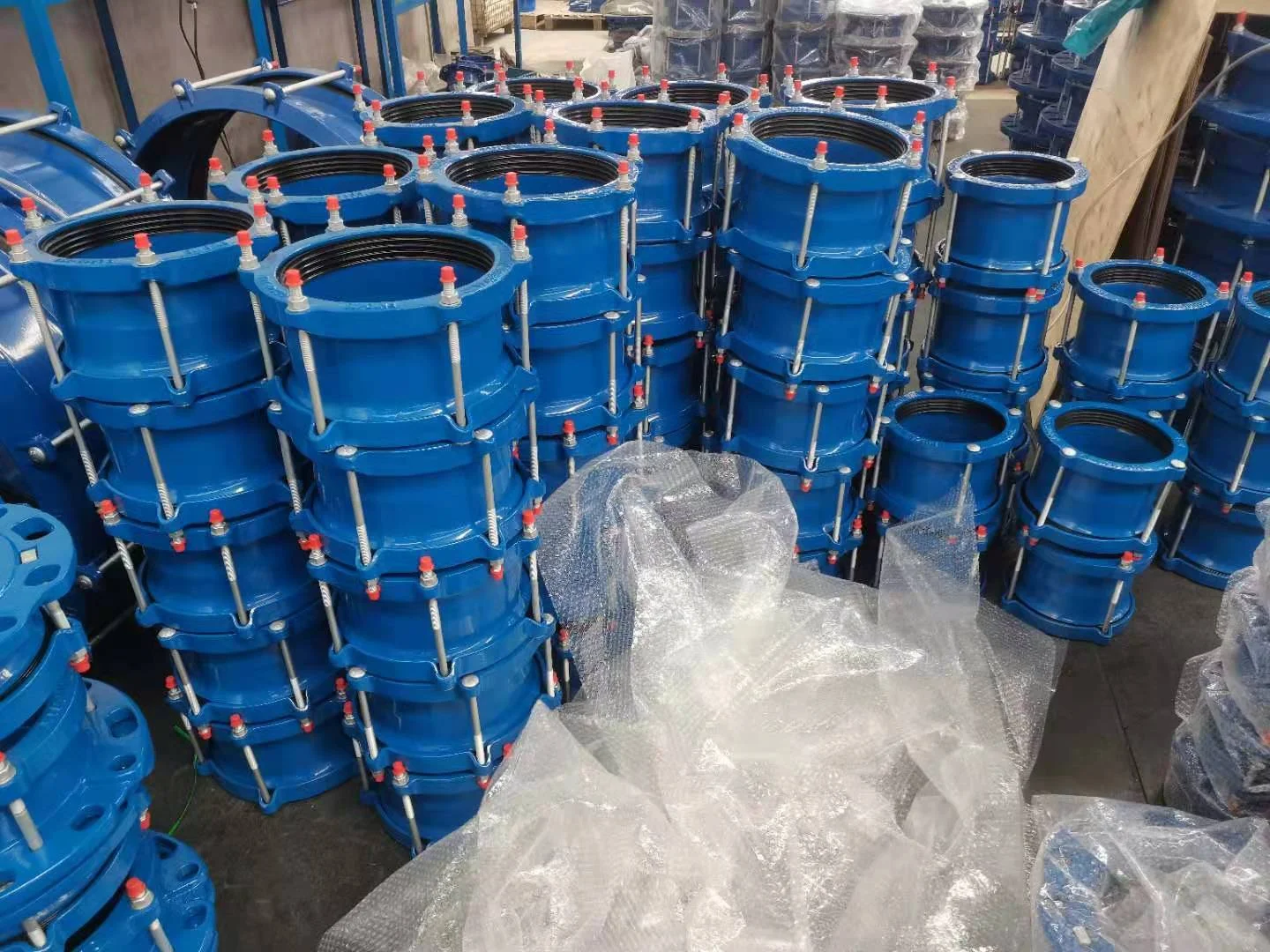

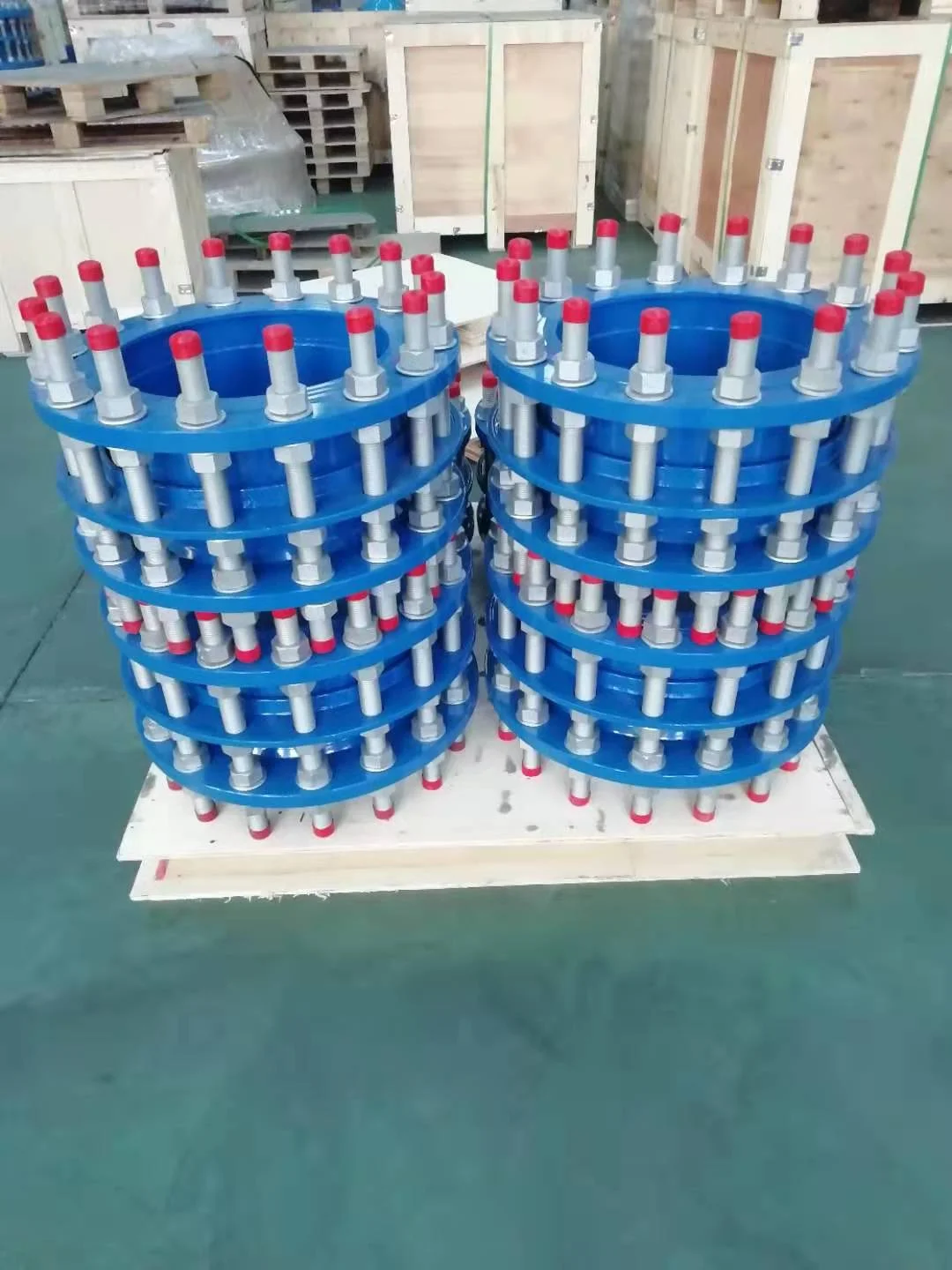

Project Cases

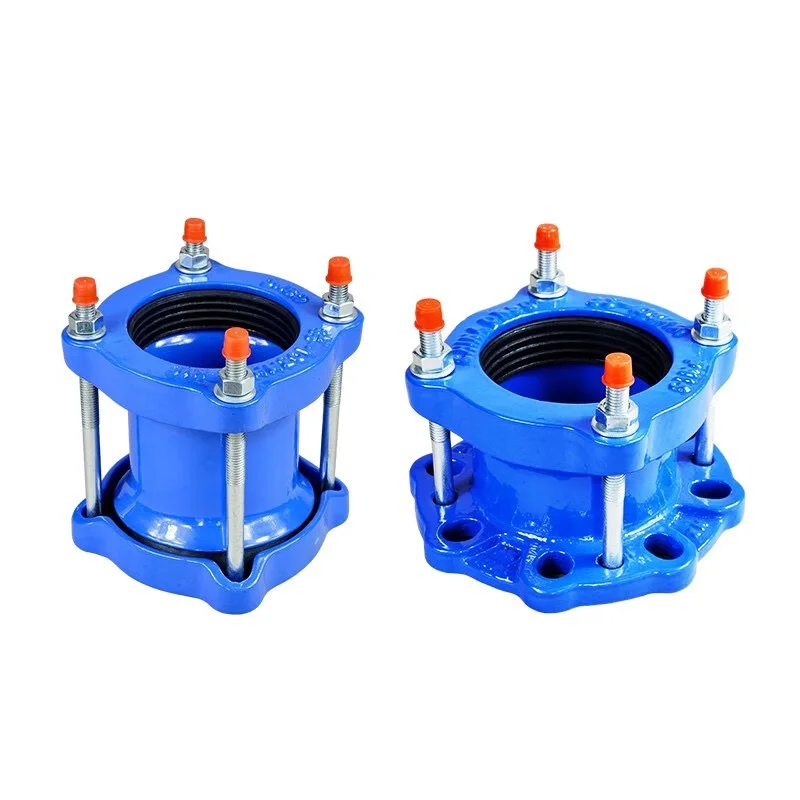

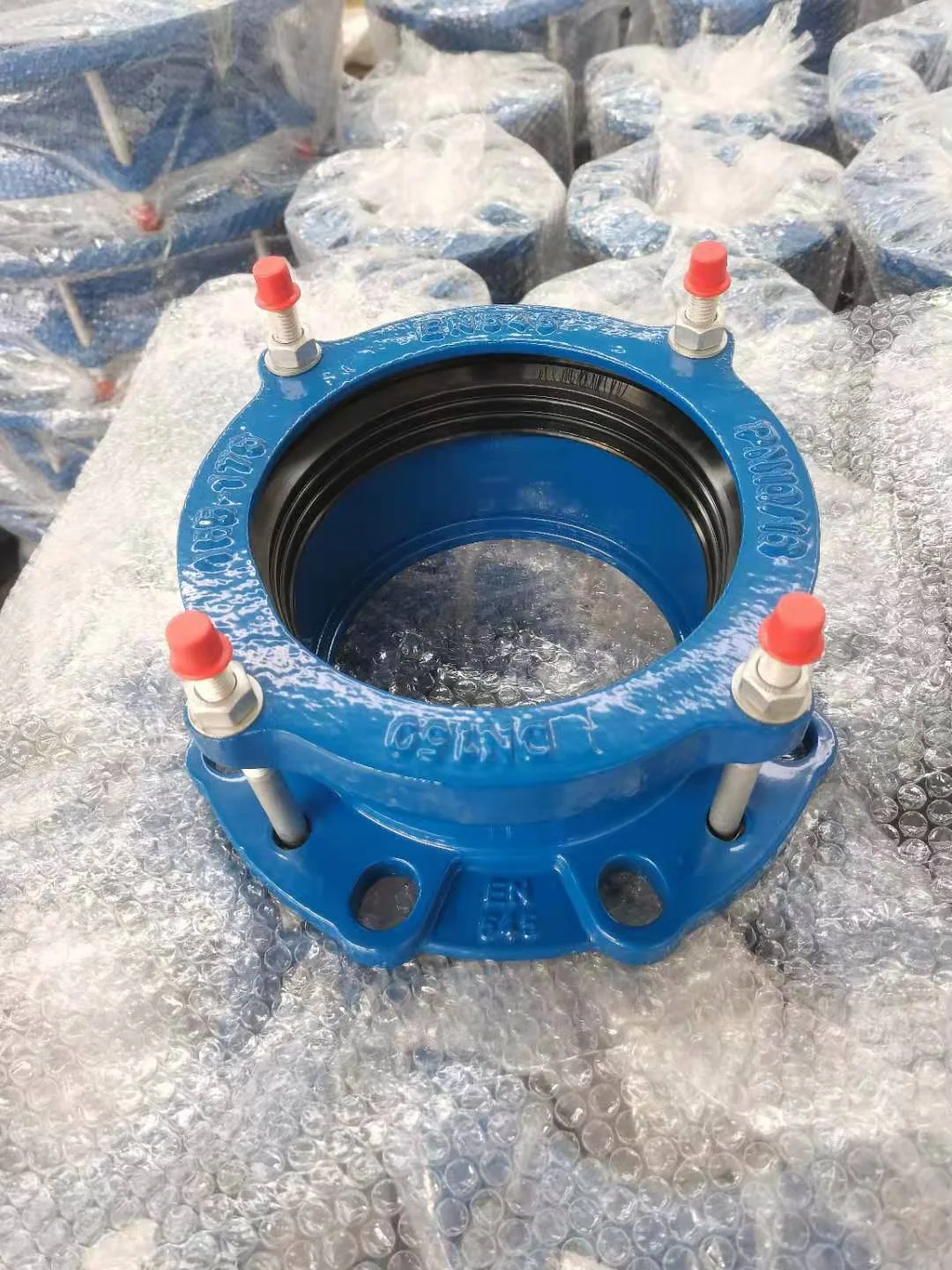

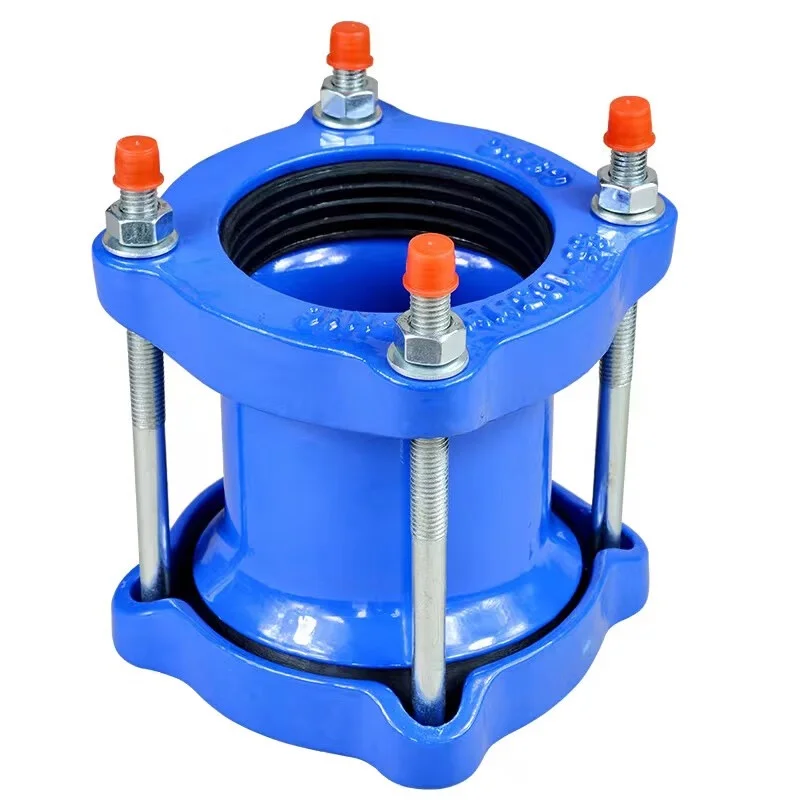

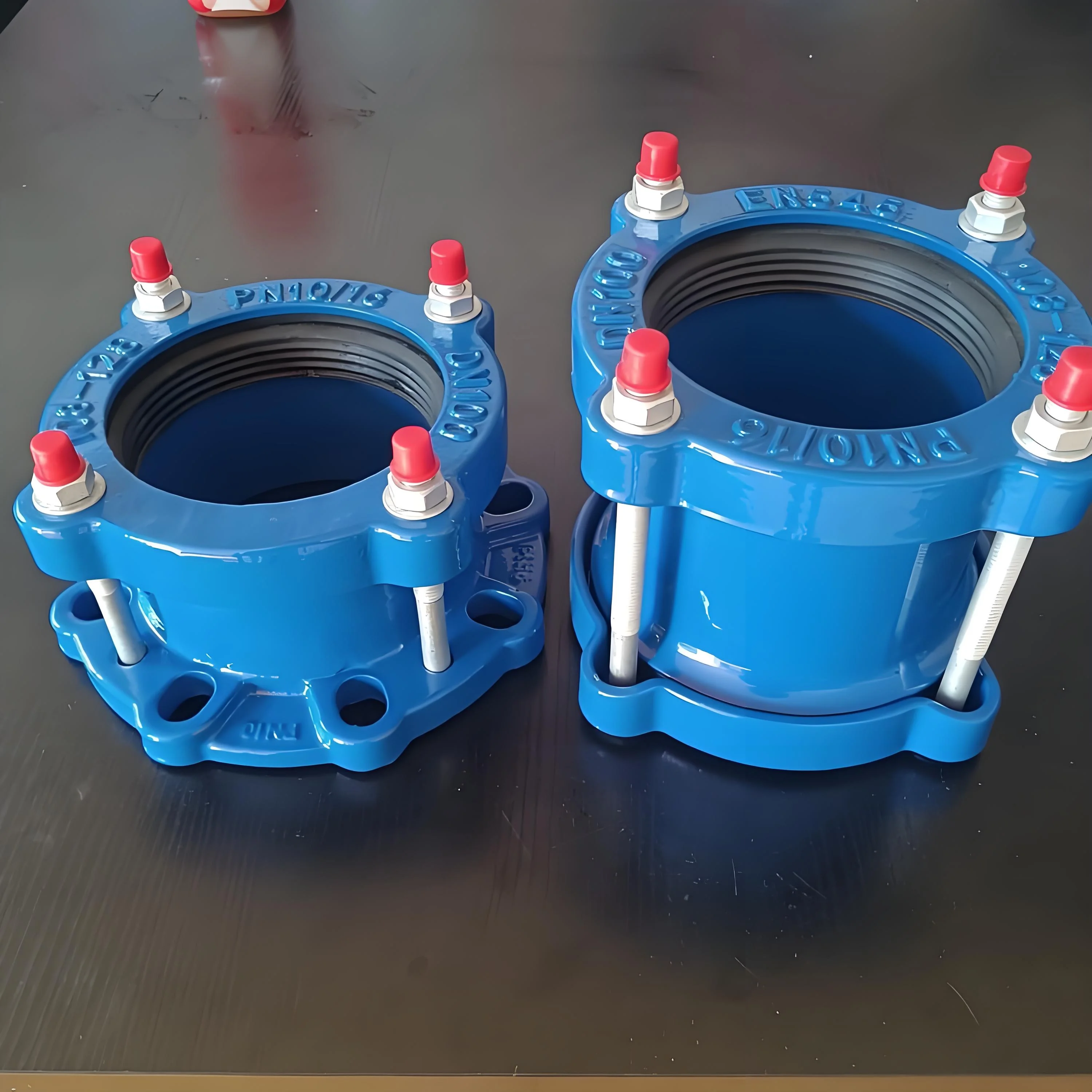

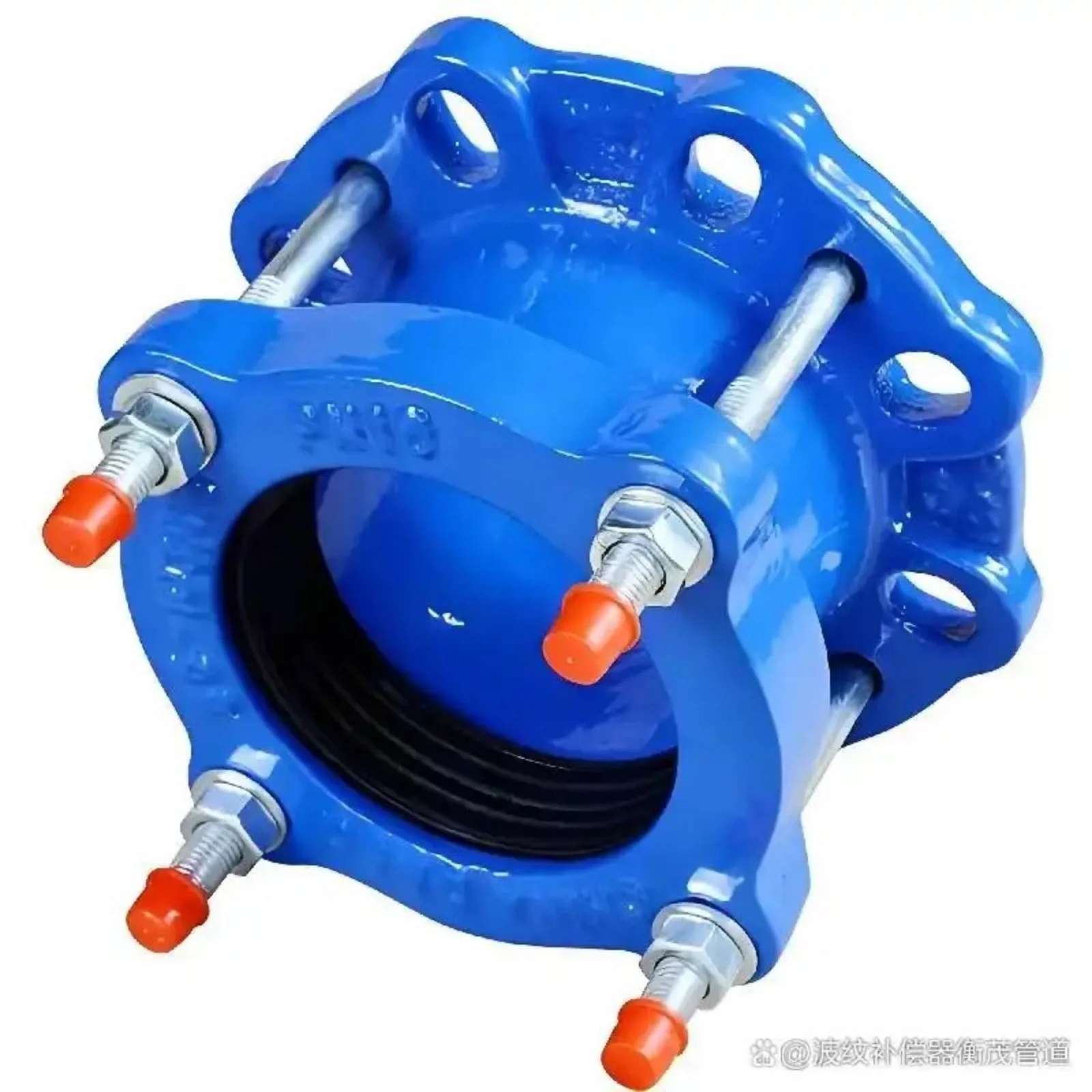

Flexible Joint
The Flexible Joint allows for angular and axial movement in pipelines, accommodating thermal expansion, ground settlement, and minor misalignments. Its robust construction maintains system integrity while providing necessary flexibility for long-distance water transmission pipelines and industrial piping systems.
Technical Specifications
- Size Range: DN50 - DN1200
- Pressure Rating: PN10, PN16, PN25
- Material: Ductile iron, Cast iron, Steel
- Angular Deflection: Up to 5 degrees
- Axial Movement: Up to 50mm
- Application: Transmission pipelines, Pump connections

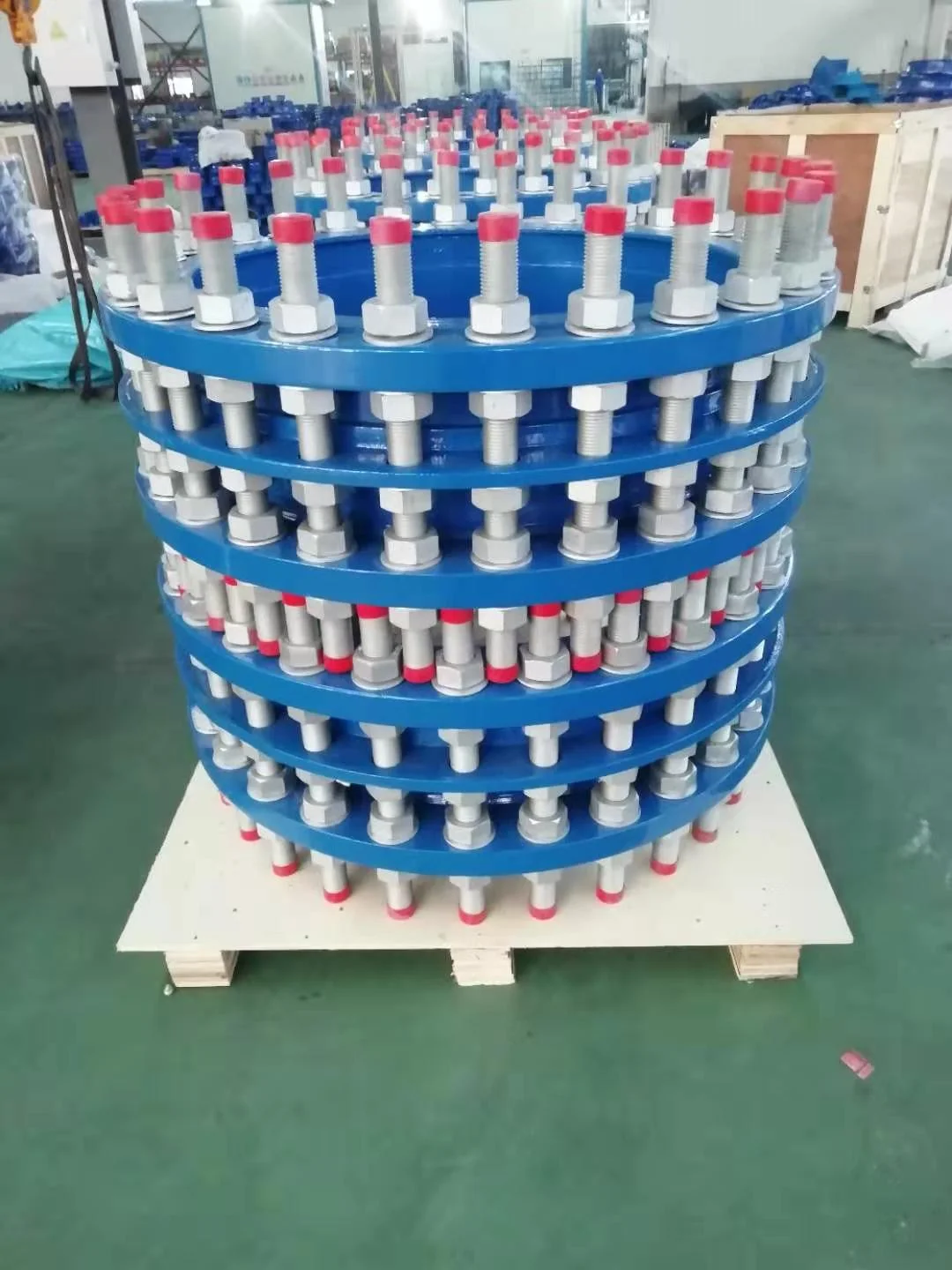

Project Cases

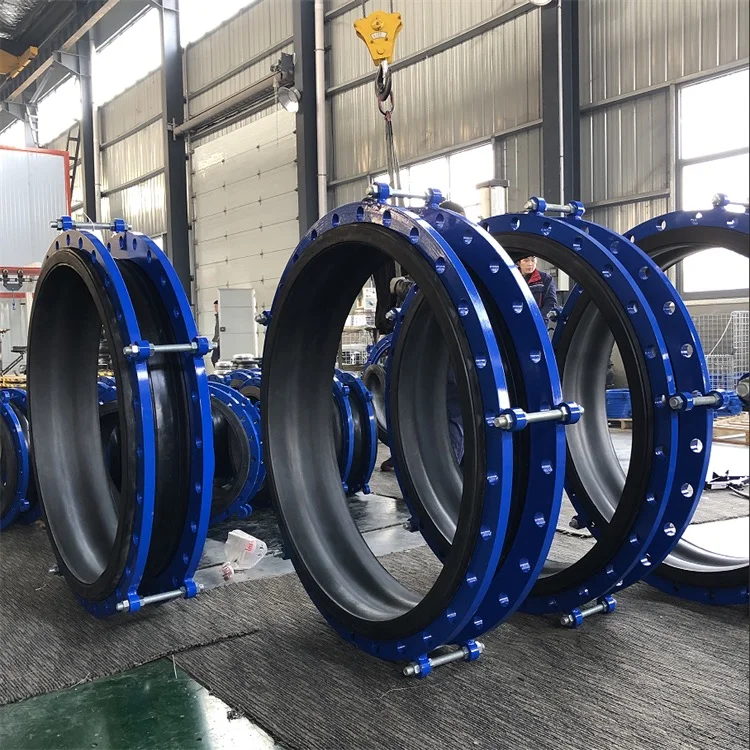

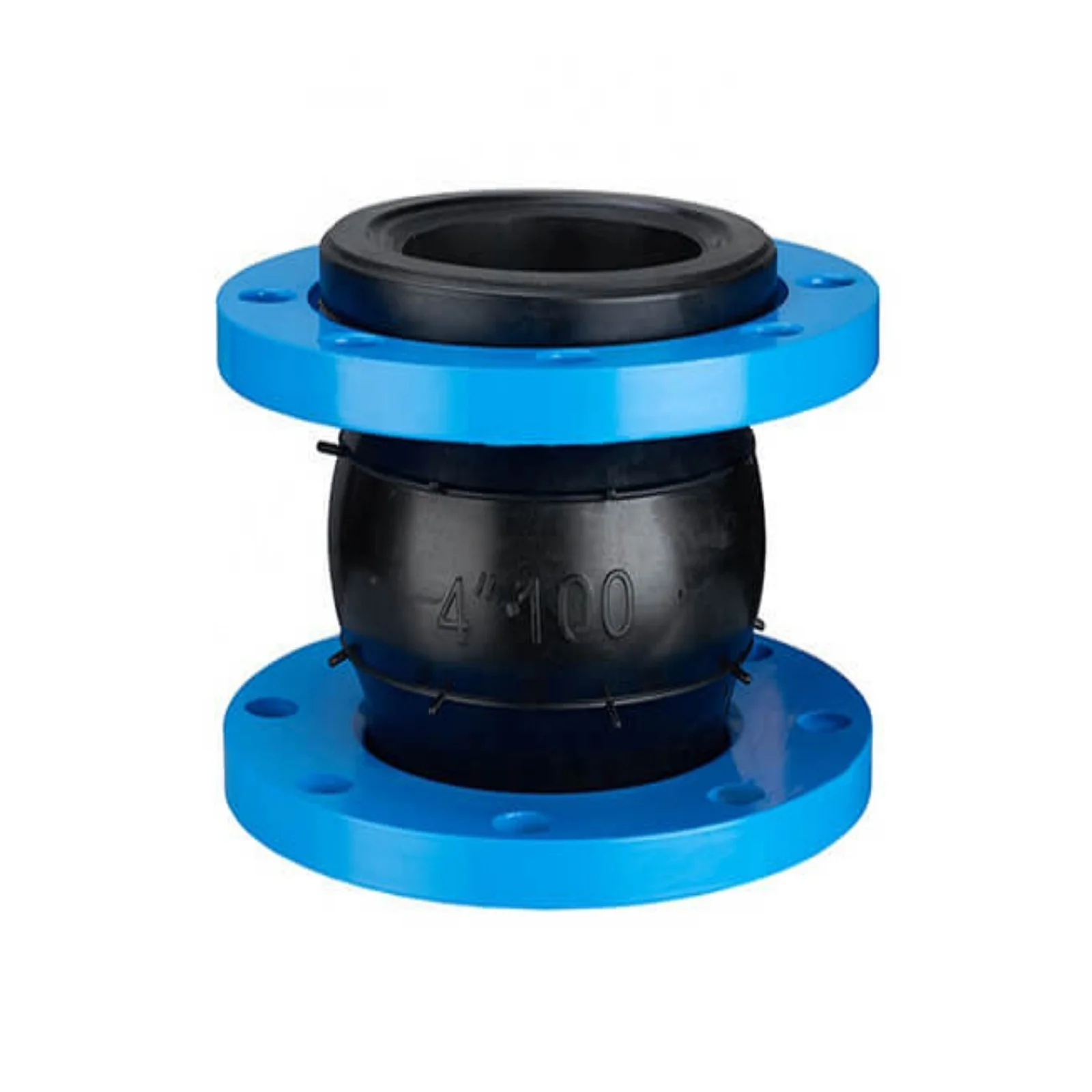

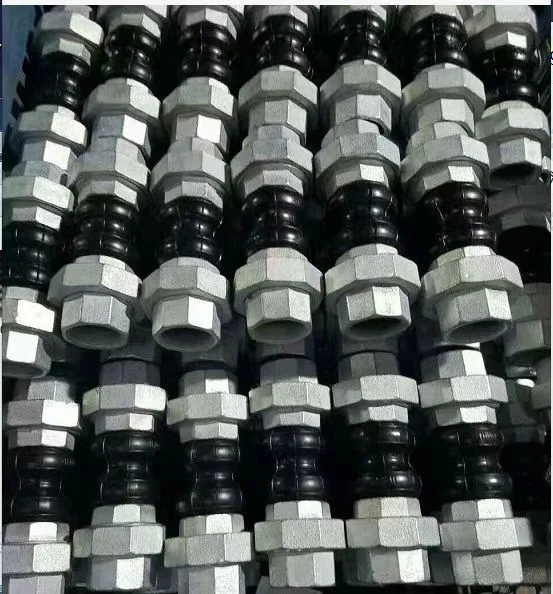

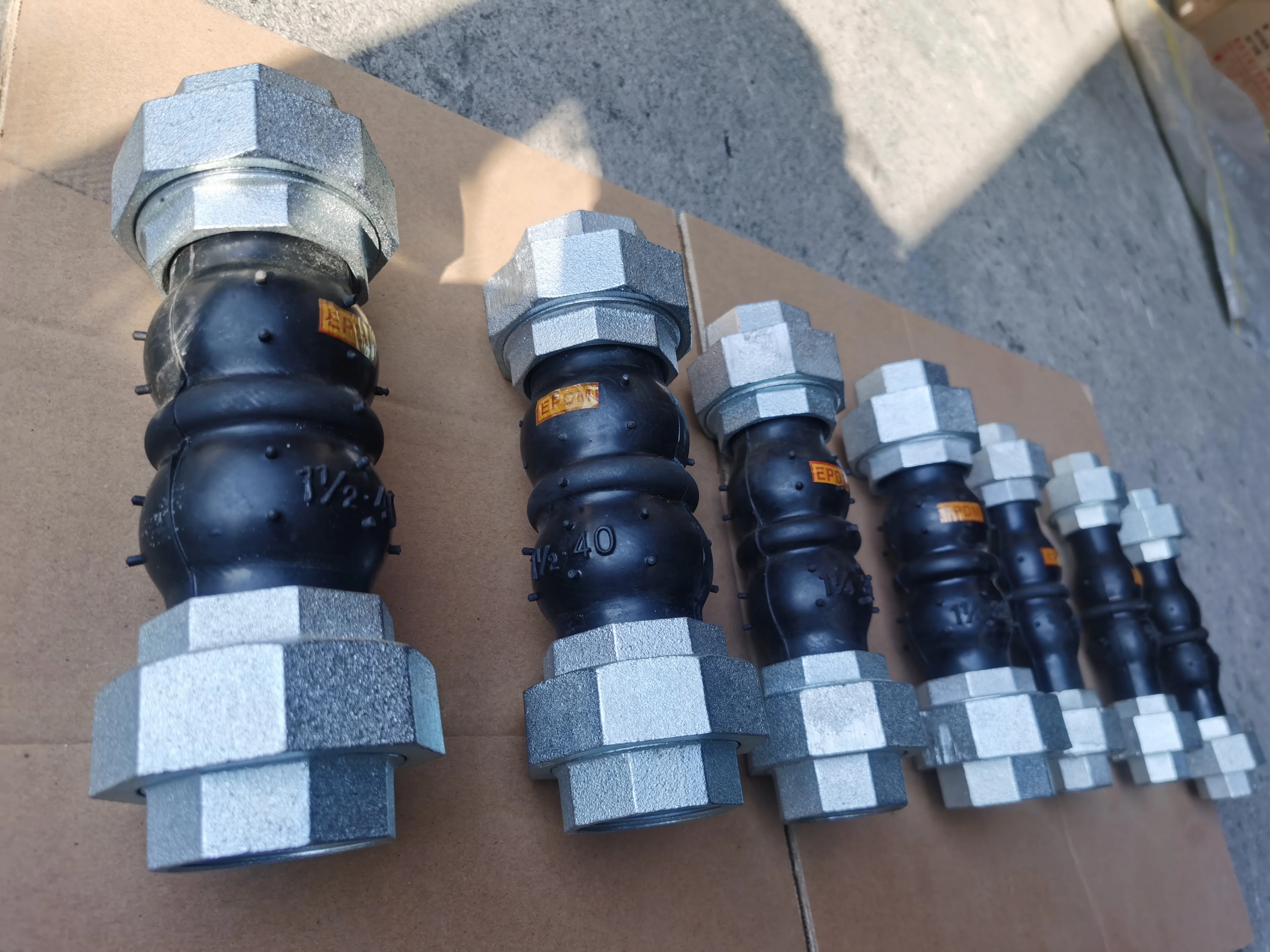

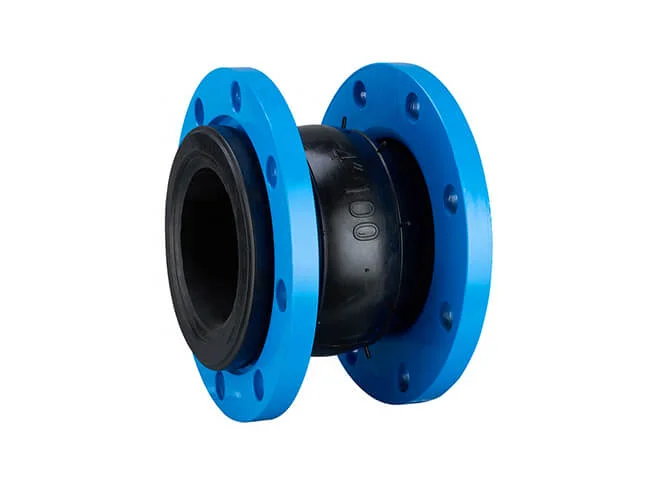

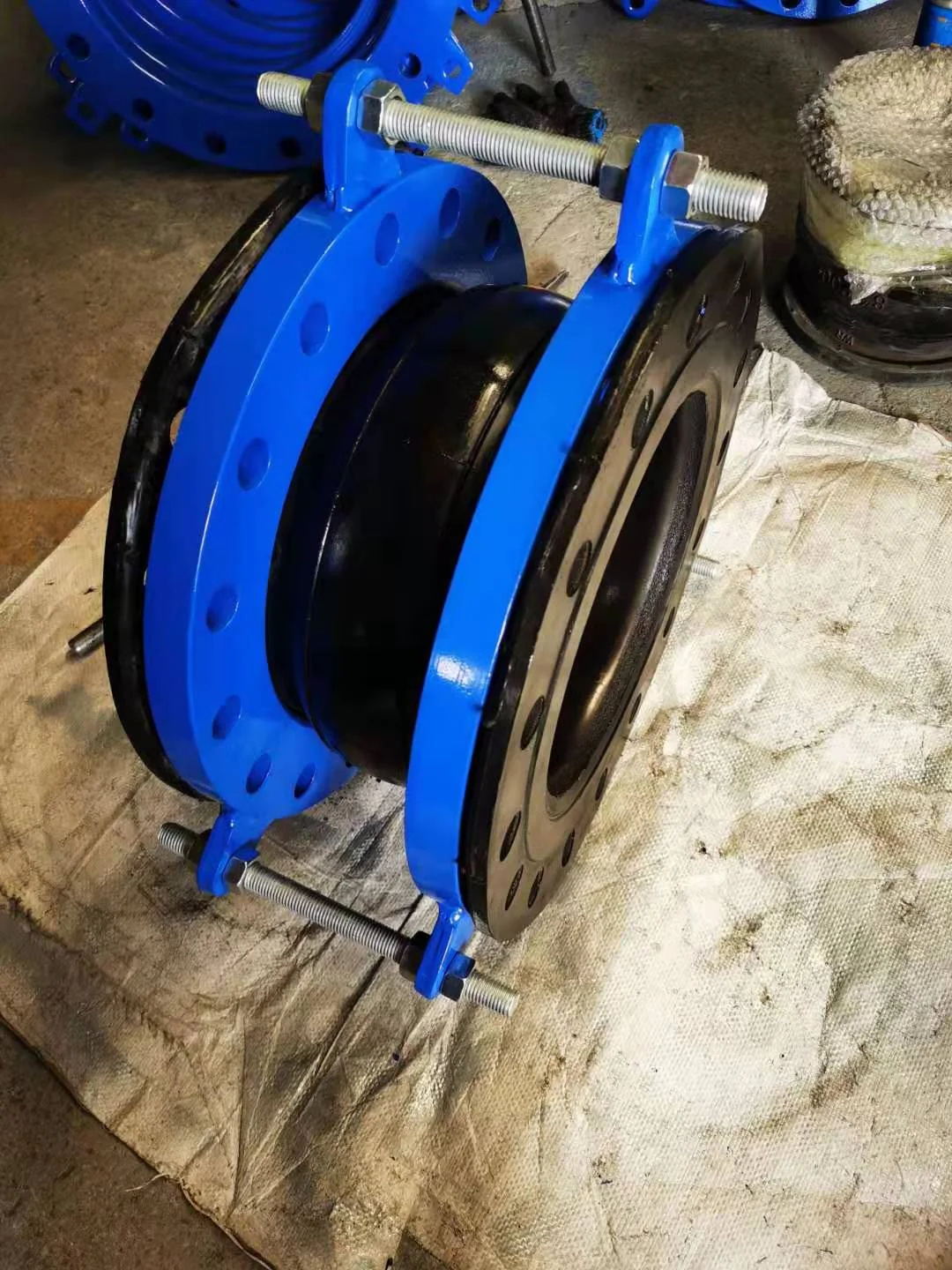

Rubber Joint
The Rubber Joint is a flexible connector that absorbs vibration, reduces noise, and compensates for thermal expansion and pipeline misalignment. Its rubber body provides excellent damping properties for pump connections, HVAC systems, and industrial piping where vibration control is essential.
Technical Specifications
- Size Range: DN32 - DN1200
- Pressure Rating: PN6, PN10, PN16
- Body Material: EPDM, NBR, Neoprene
- Reinforcement: Multiple ply fabric/steel
- Movement: Axial, Lateral, Angular
- Application: Pumps, Compressors, HVAC

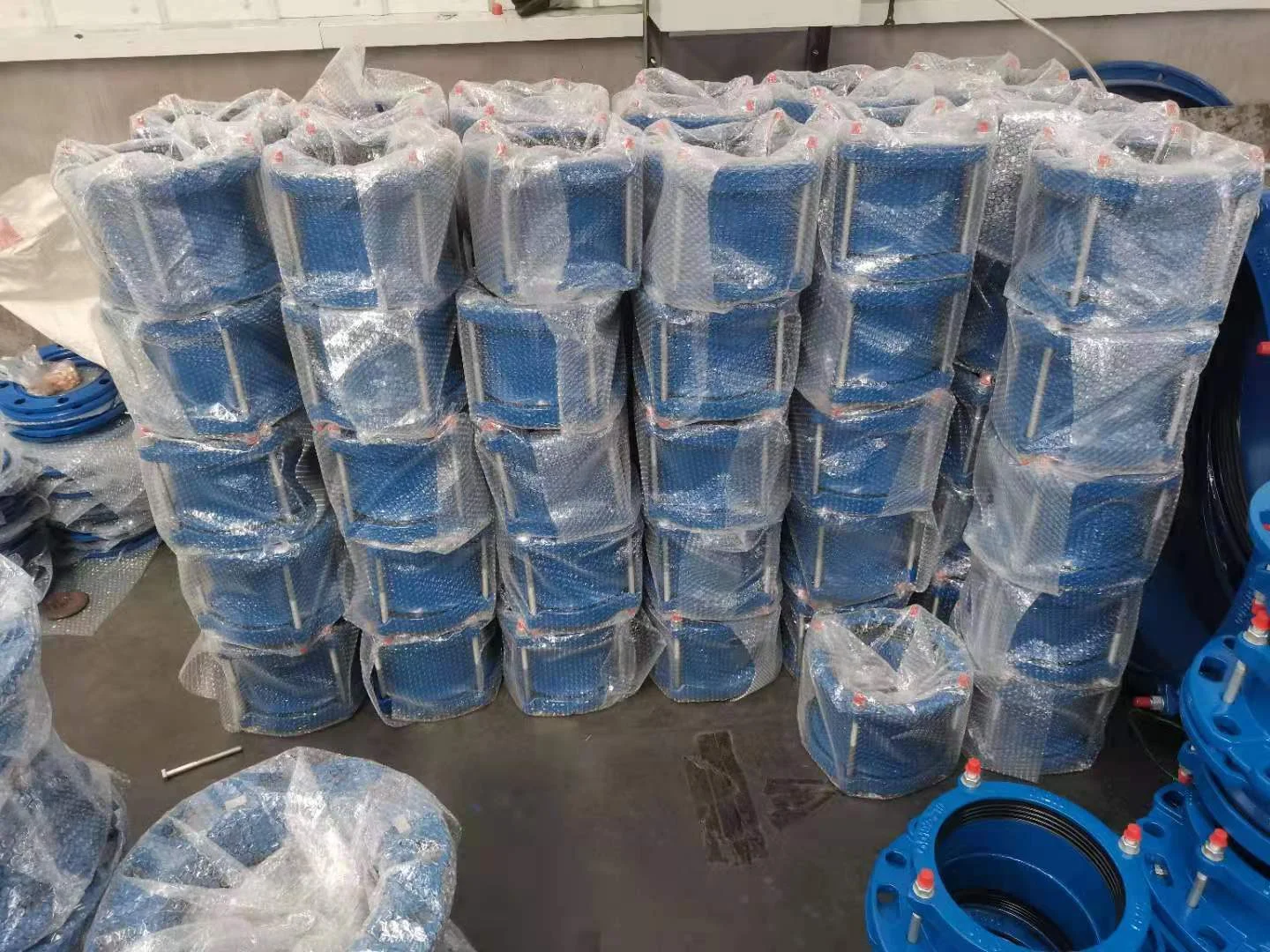

Project Cases
