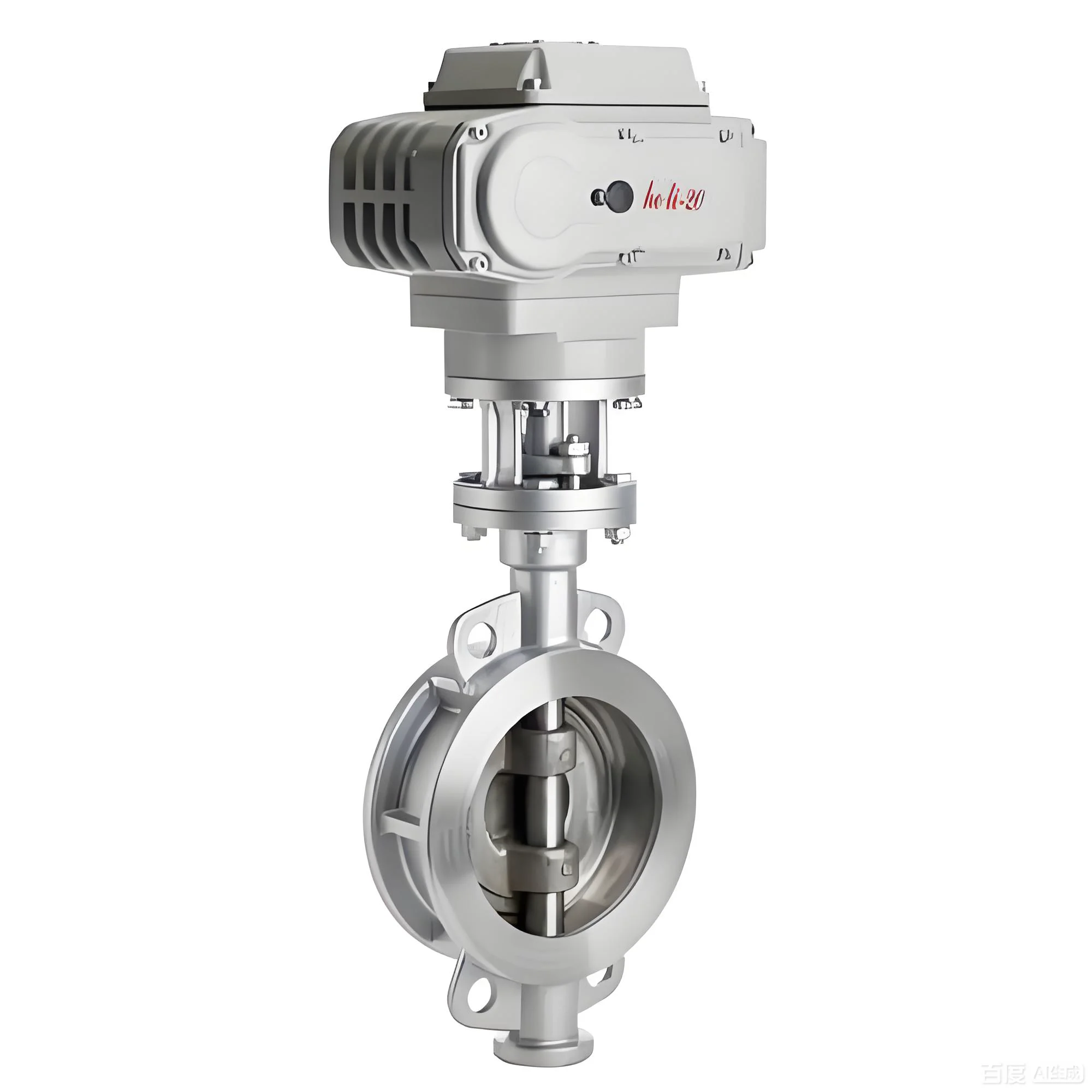

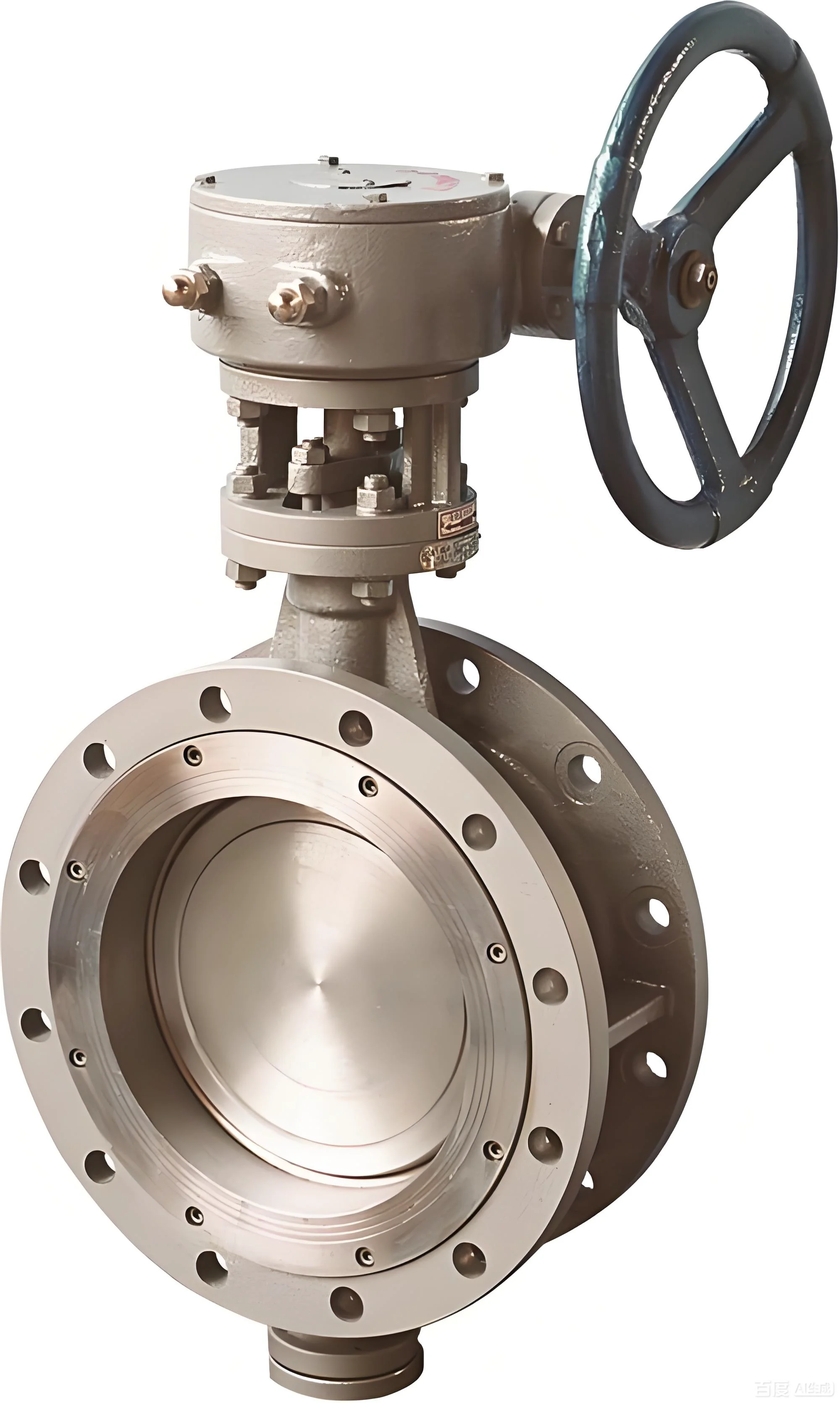

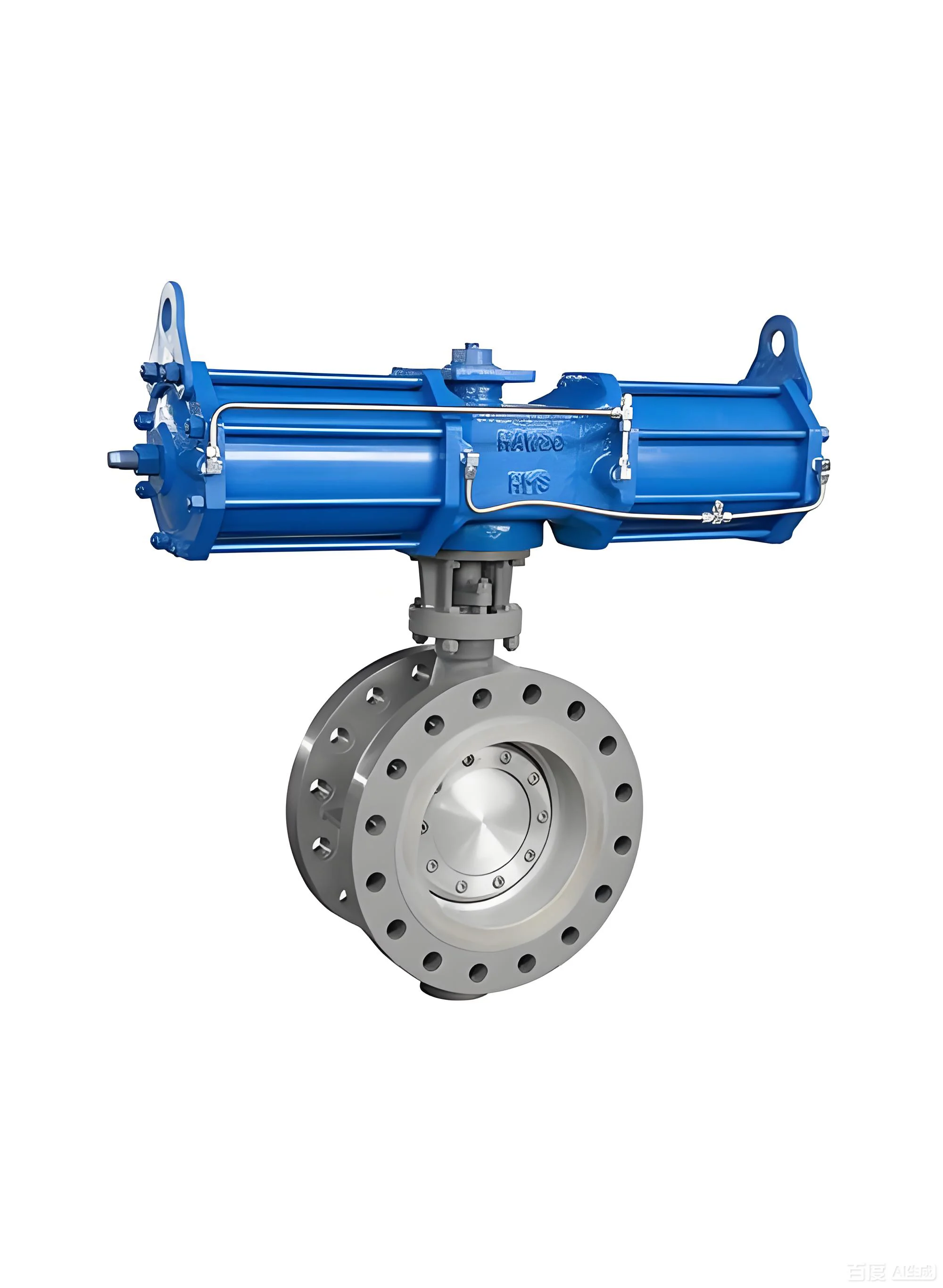

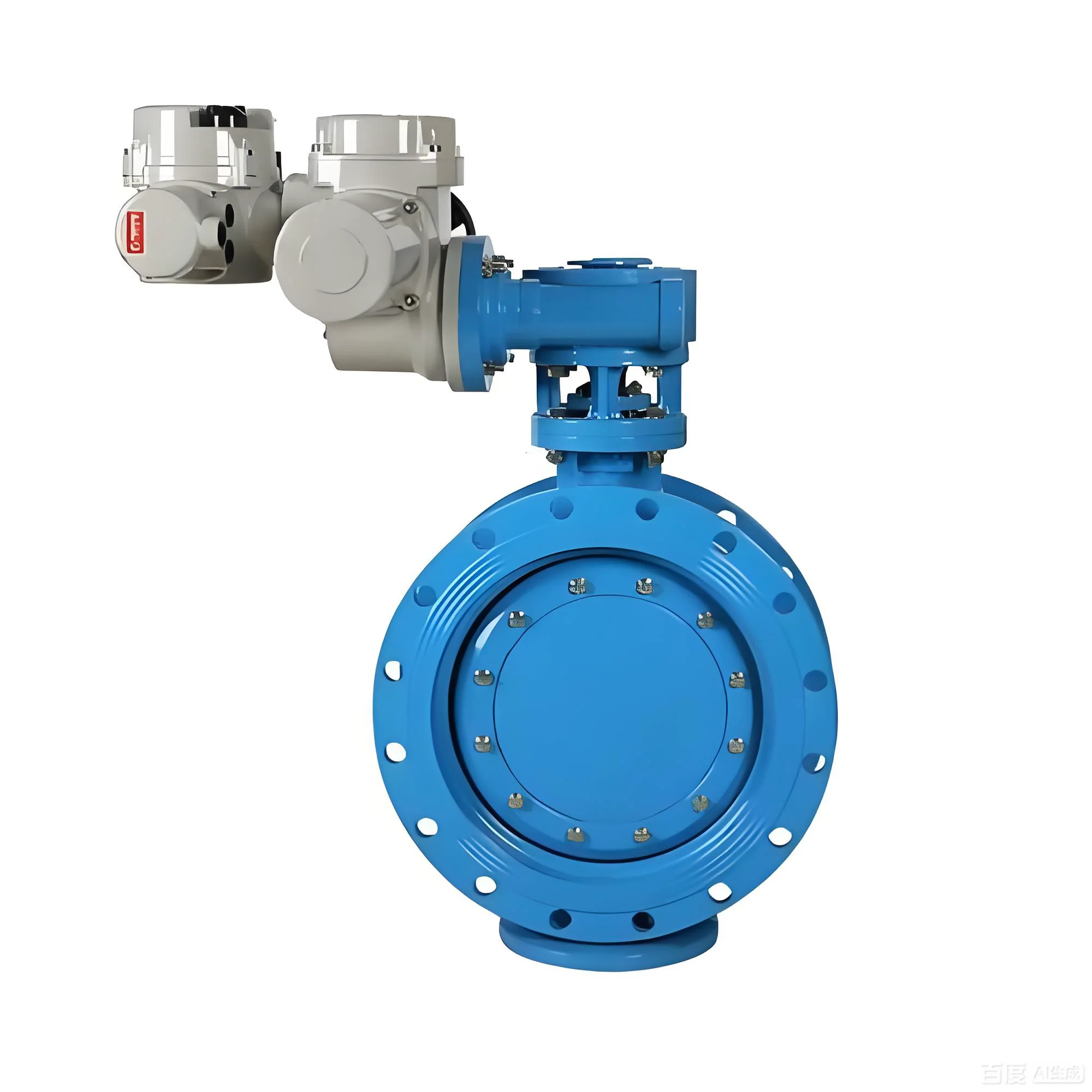

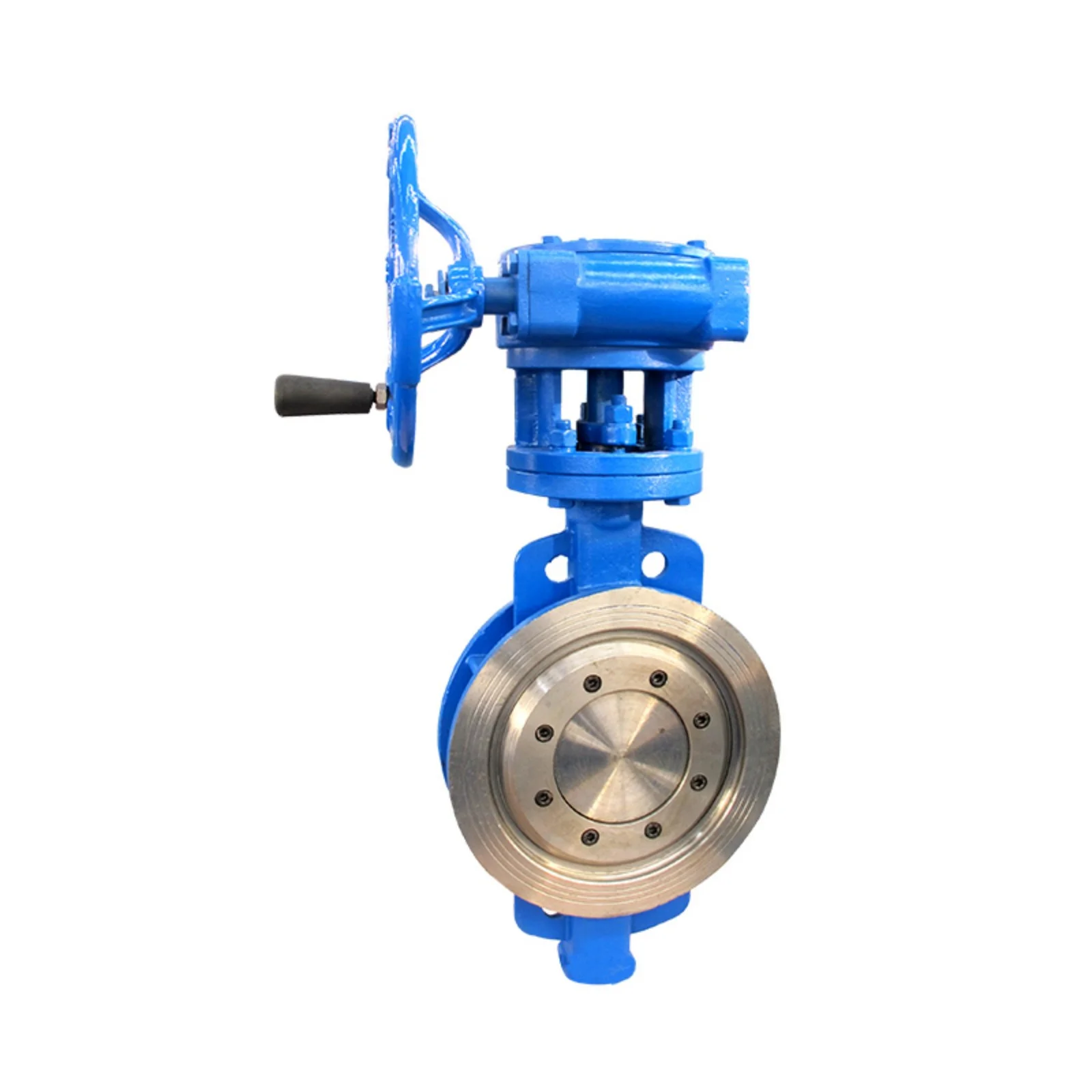

Triple Eccentric Butterfly Valve
The Triple Eccentric Butterfly Valve is designed for high-pressure and high-temperature applications. The triple eccentric design eliminates friction between the seat and disc throughout the operating cycle, providing zero leakage and extended service life. Ideal for oil & gas, chemical, and industrial applications.
Technical Specifications
- Size Range: DN50 - DN1200
- Pressure Rating: PN10 - PN64, ANSI 150 - 600
- Material: Ductile iron, Carbon steel, Stainless steel
- Seat: Metal seat, PTFE lined
- Temperature Range: -40°C to 425°C
- Application: Oil & Gas, Chemical, Industrial

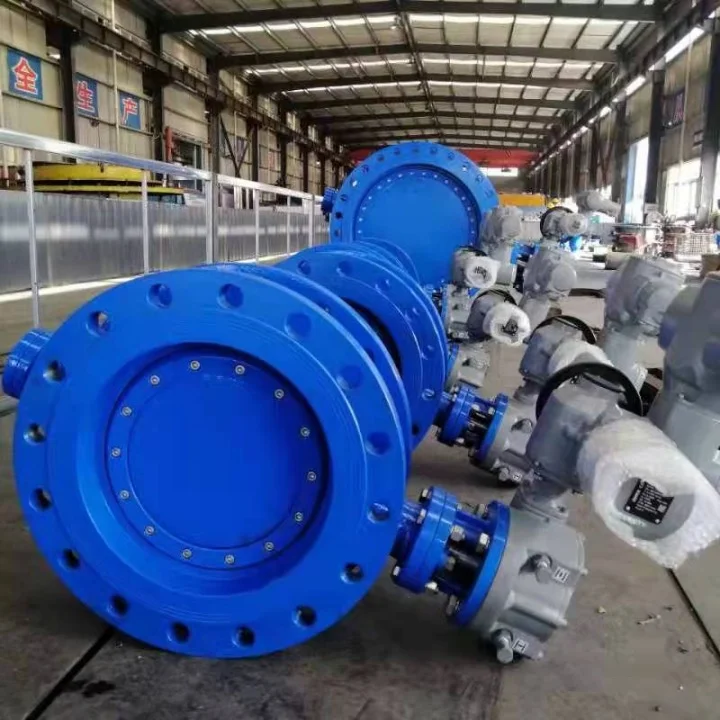

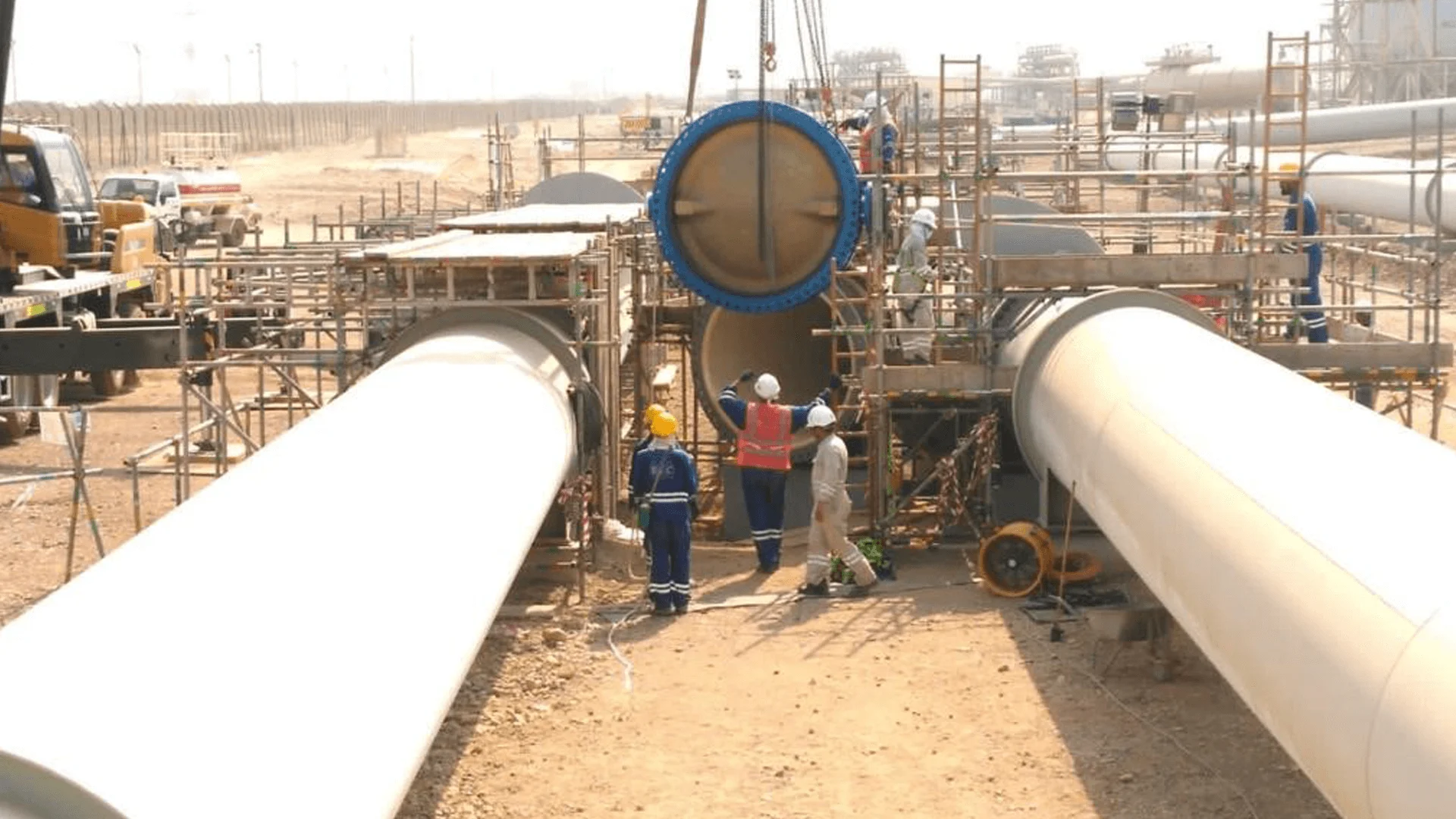

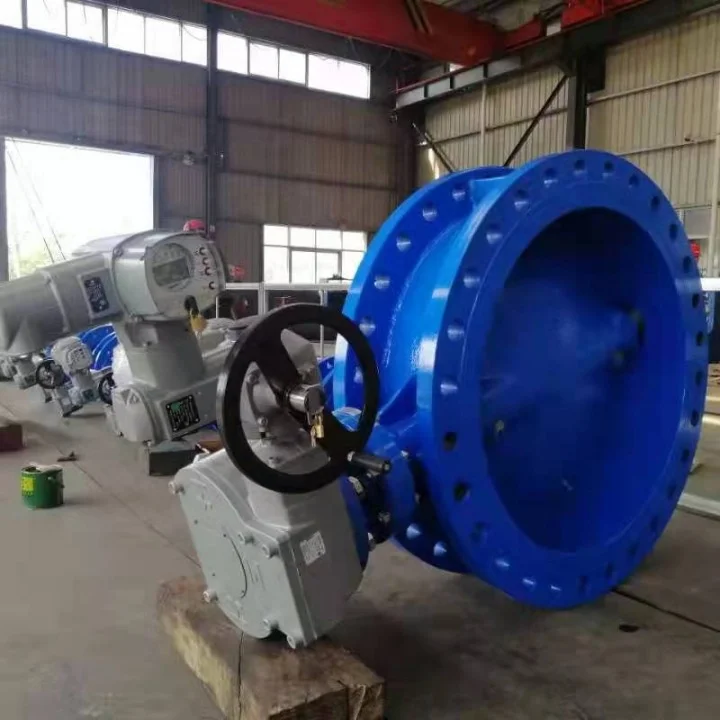

Project Cases

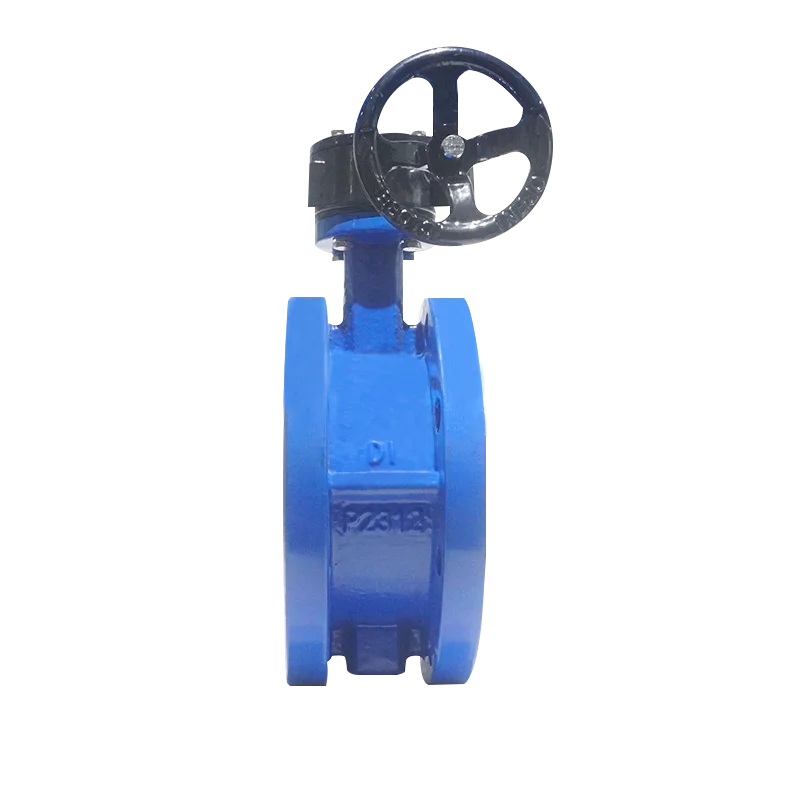

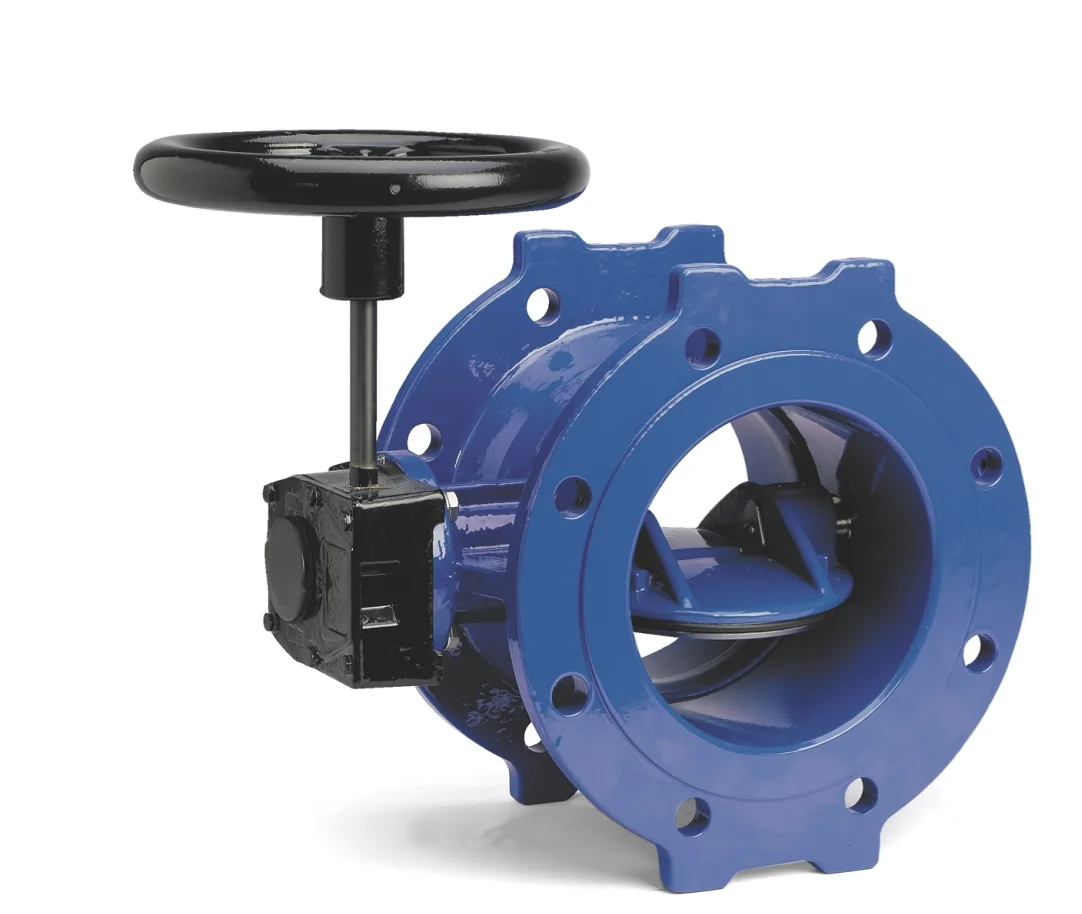

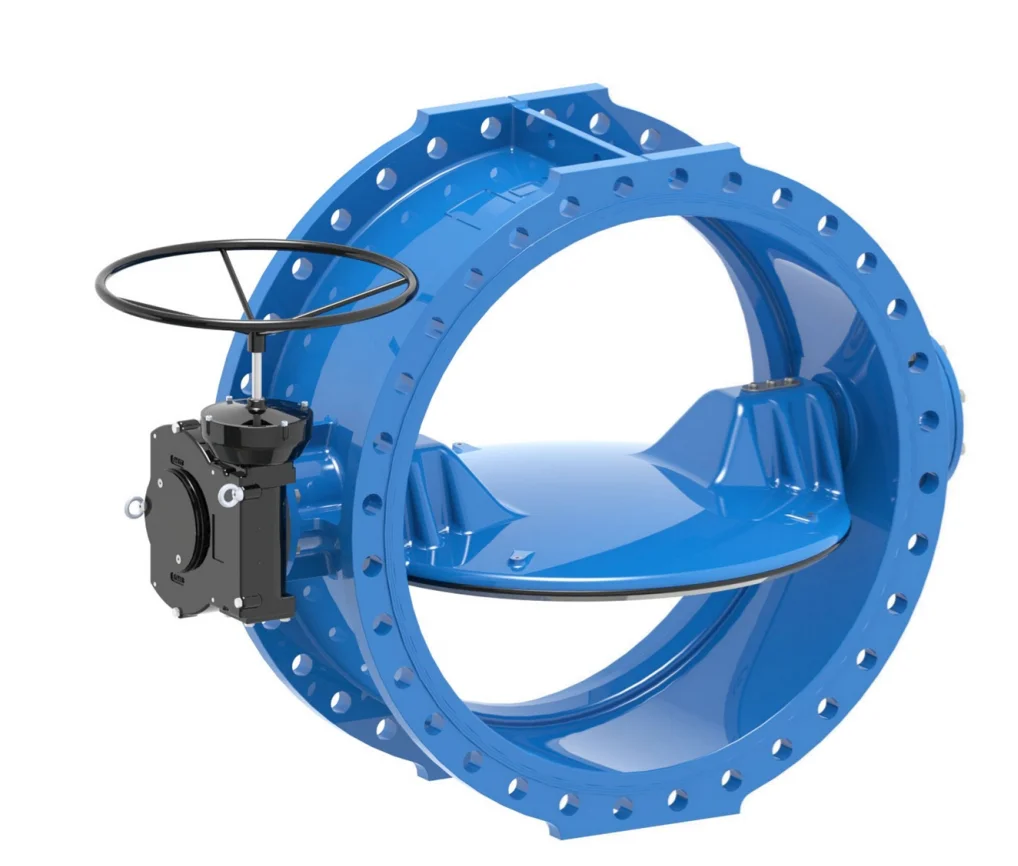

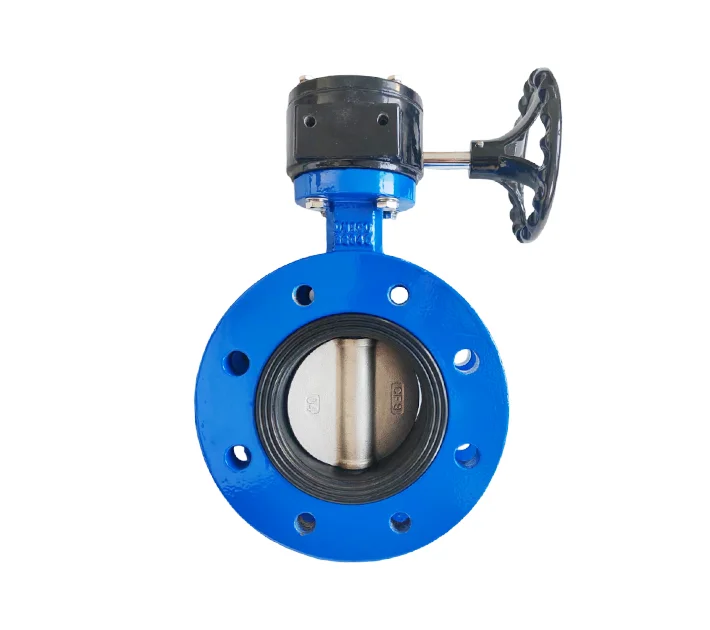

Double Eccentric Butterfly Valve
The Double Eccentric Butterfly Valve features an offset disc design that reduces seat friction and wear. This design provides bubble-tight shutoff and smooth operation, making it suitable for water treatment, HVAC, and general industrial applications where reliable performance is required.
Technical Specifications
- Size Range: DN50 - DN600
- Pressure Rating: PN10, PN16, PN25
- Material: Ductile iron, Cast iron
- Seat: EPDM, NBR, Viton
- Disc: Ni-plated, Stainless steel #316
- Standard: ISO, DIN, API

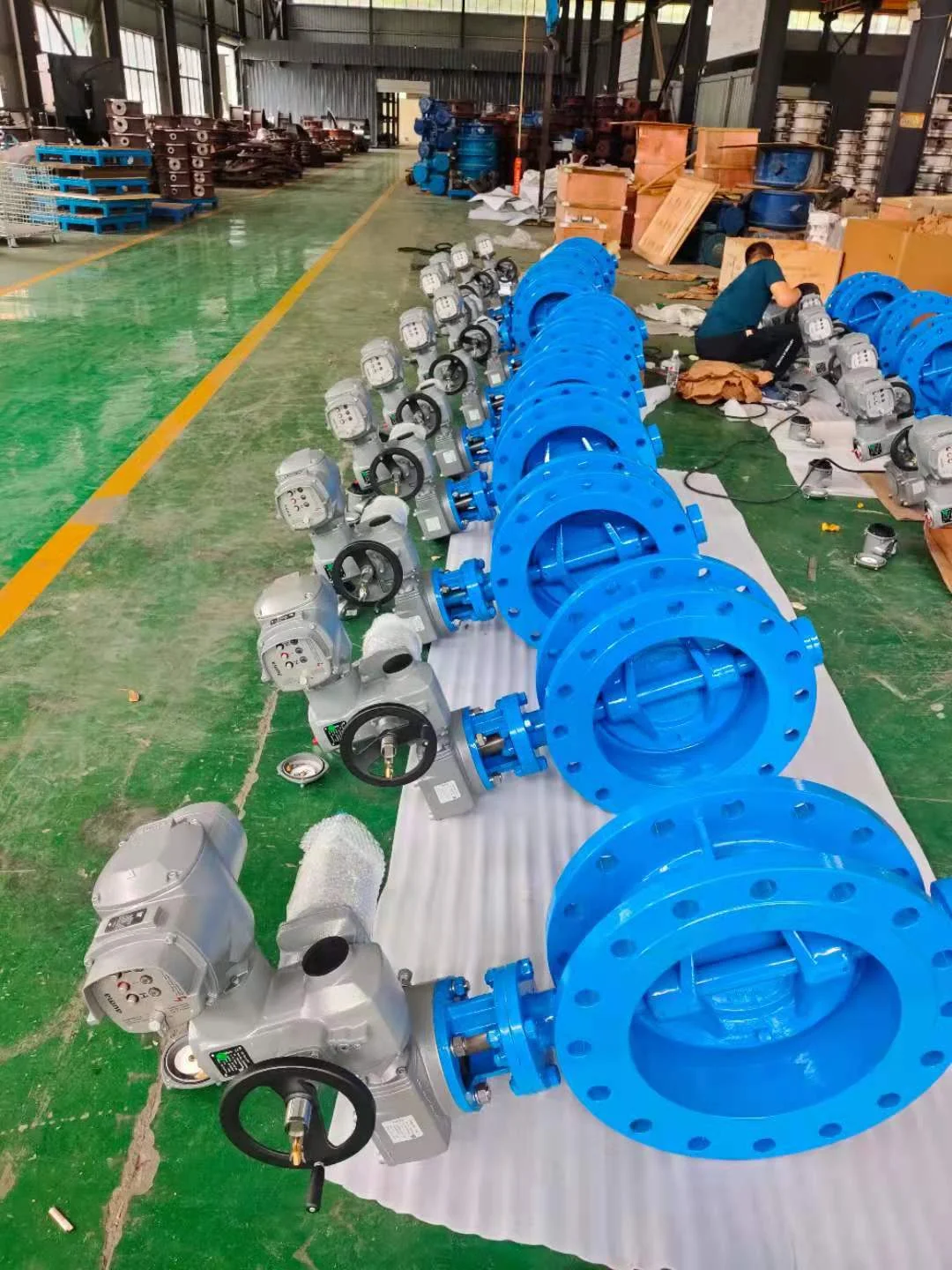

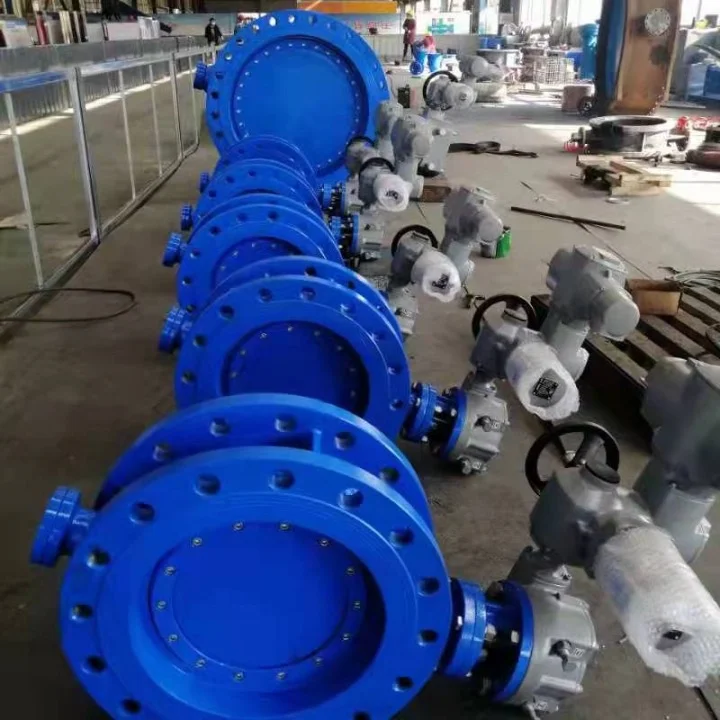

Project Cases

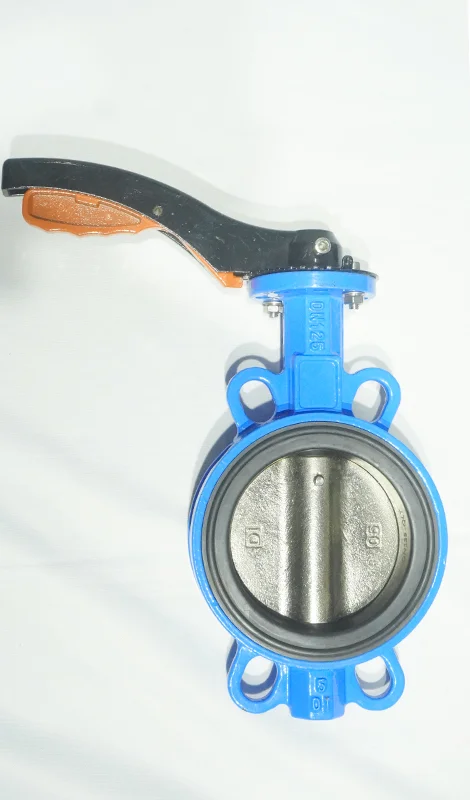

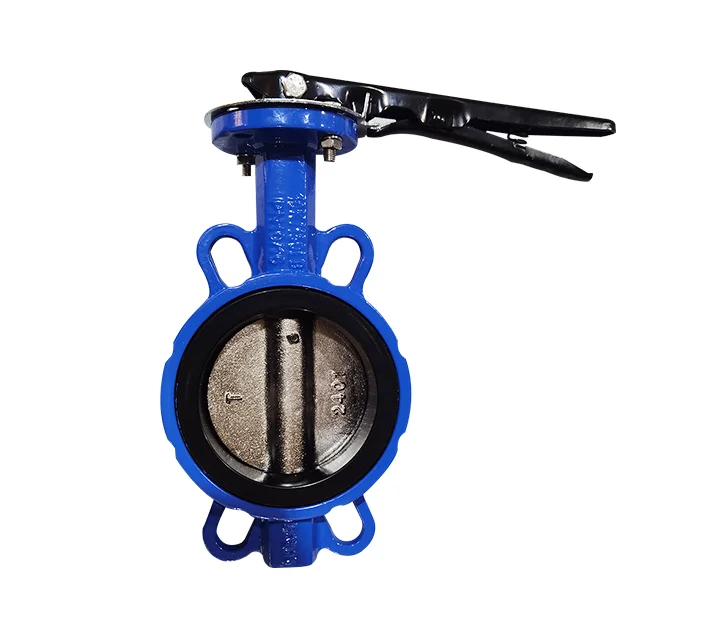

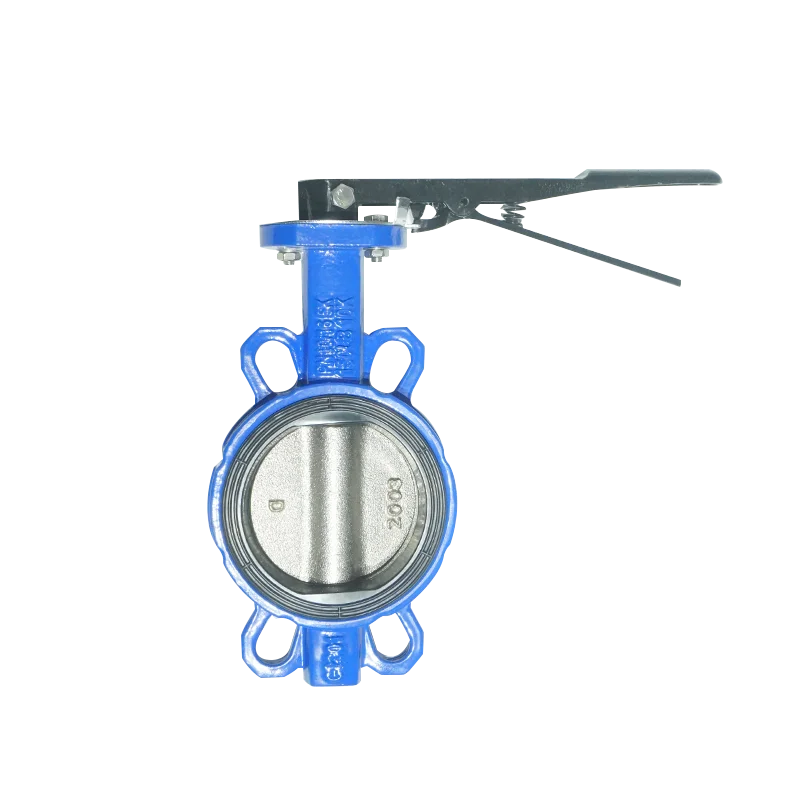

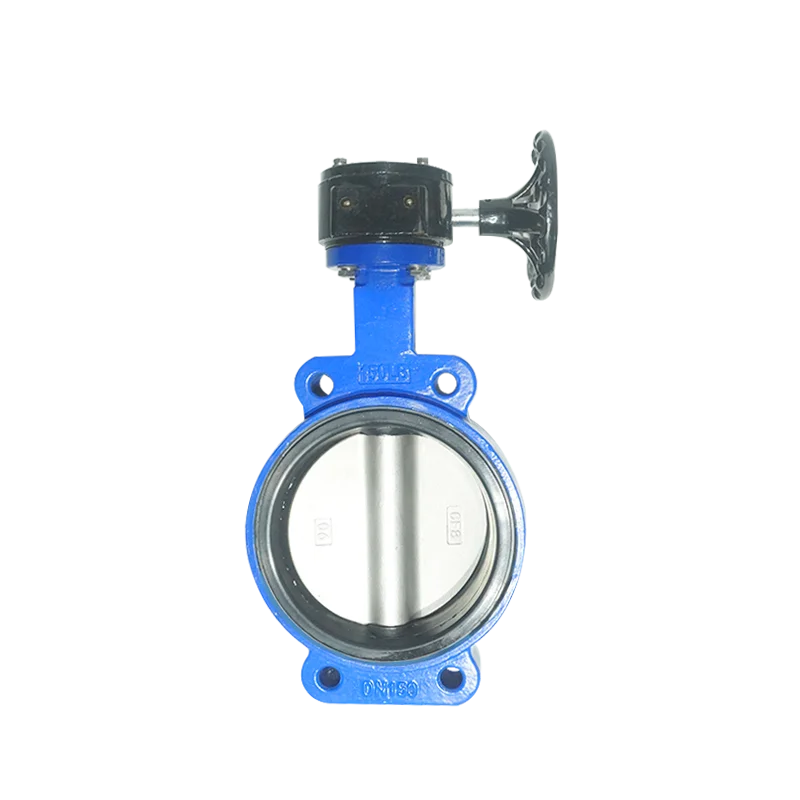

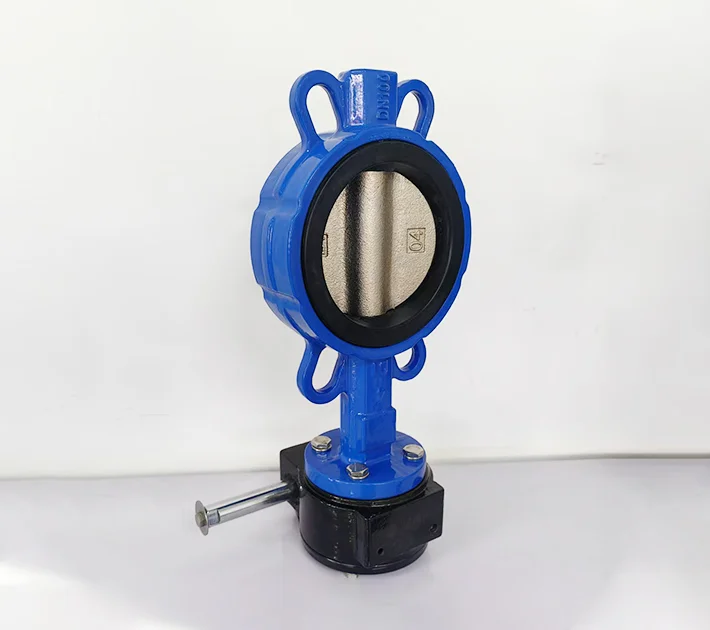

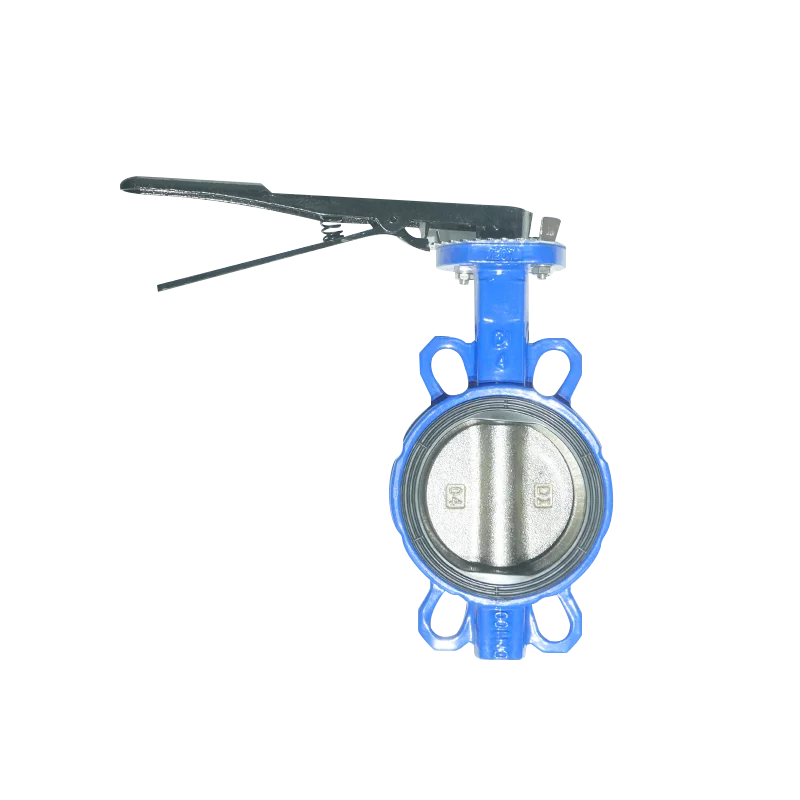

Wafer Butterfly Valve
The Wafer Butterfly Valve features a compact design that fits between two pipe flanges, making it ideal for space-constrained installations. Lightweight and cost-effective, it provides reliable flow control for water distribution, HVAC systems, and general industrial applications.
Technical Specifications
- Size Range: DN40 - DN600
- Pressure Rating: PN10, PN16
- Material: Cast iron, Ductile iron
- Seat: EPDM, NBR
- Disc: Nickel-plated, Epoxy coated
- Standard: API 609, EN 593

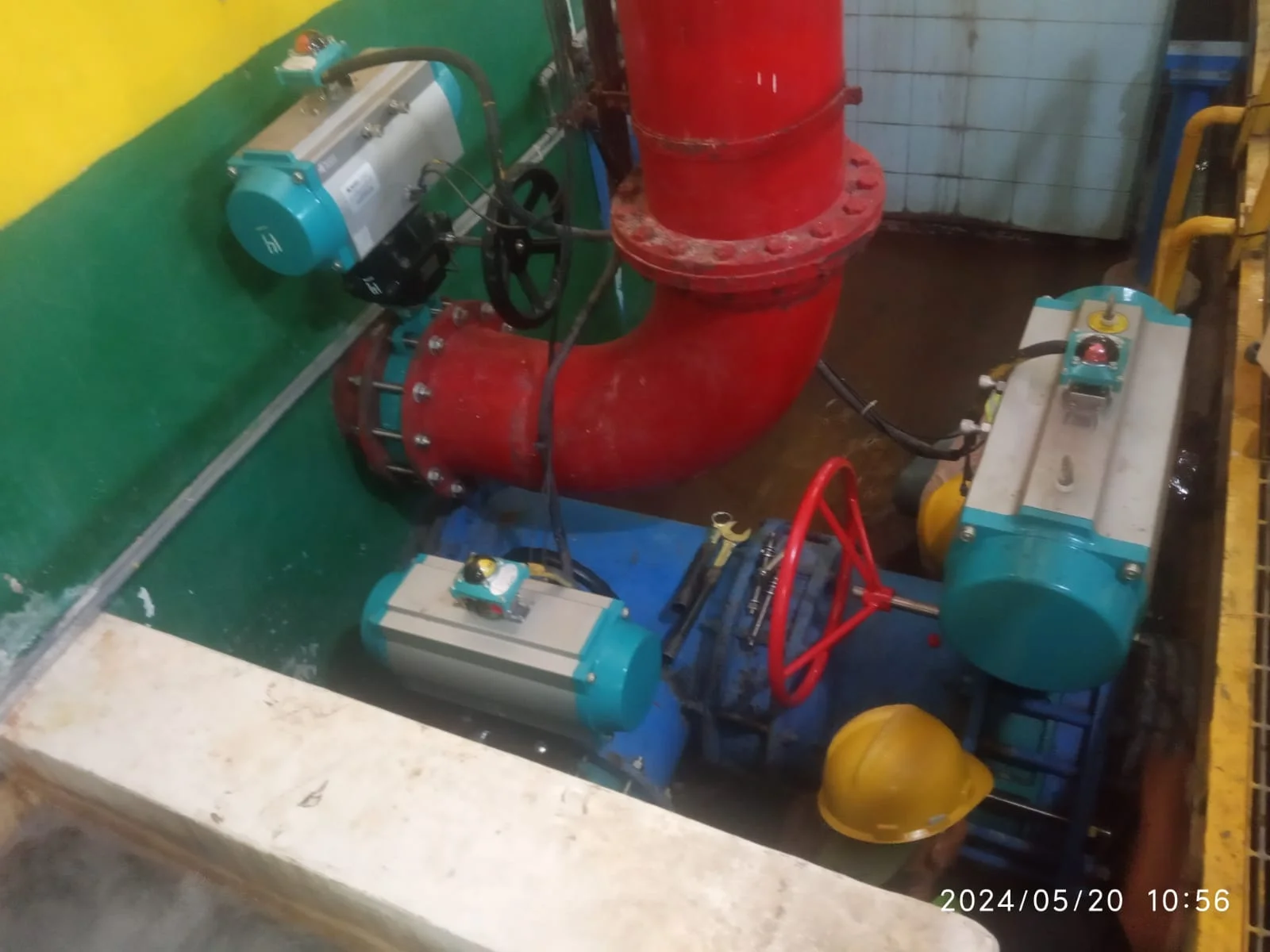

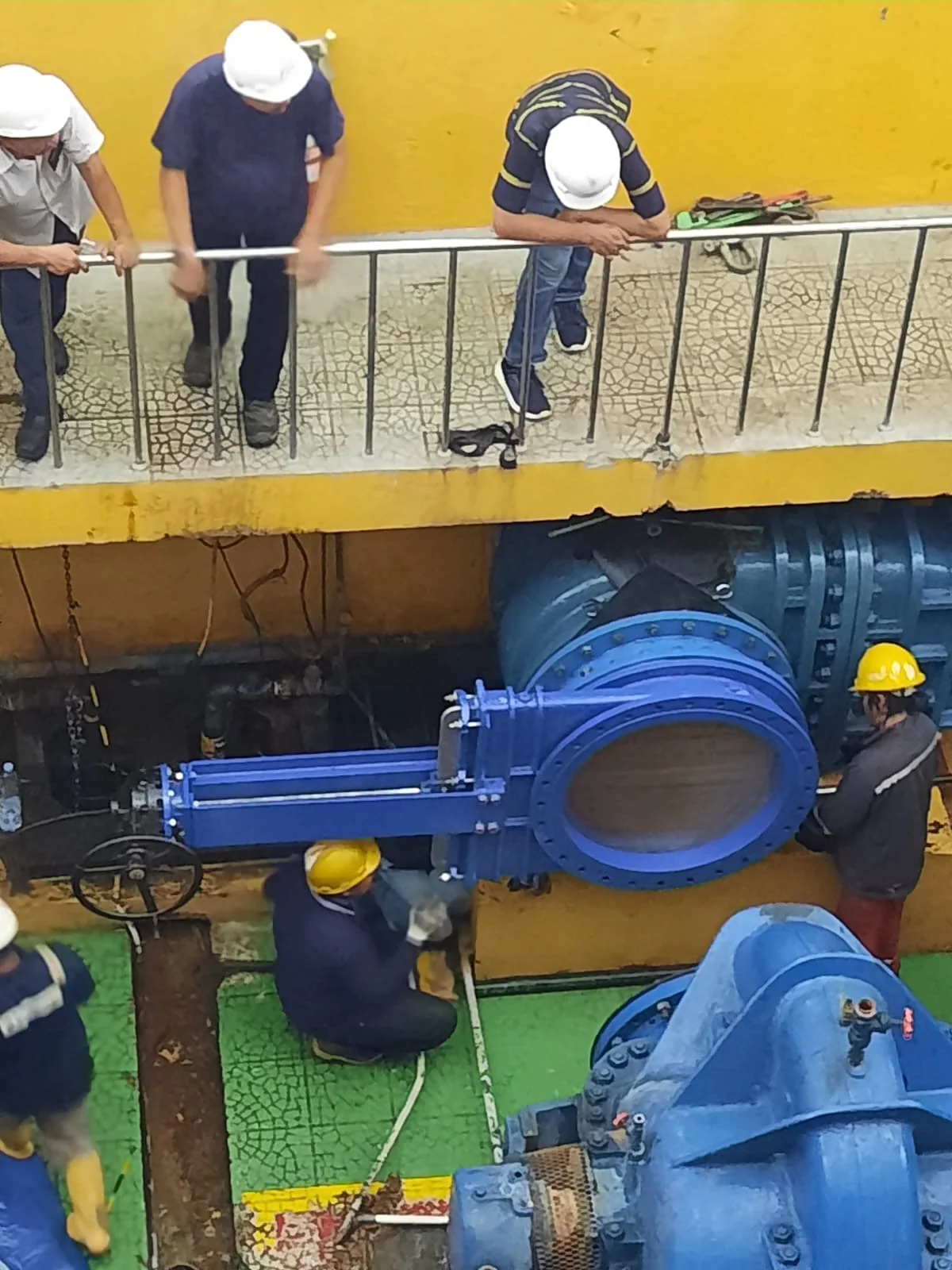

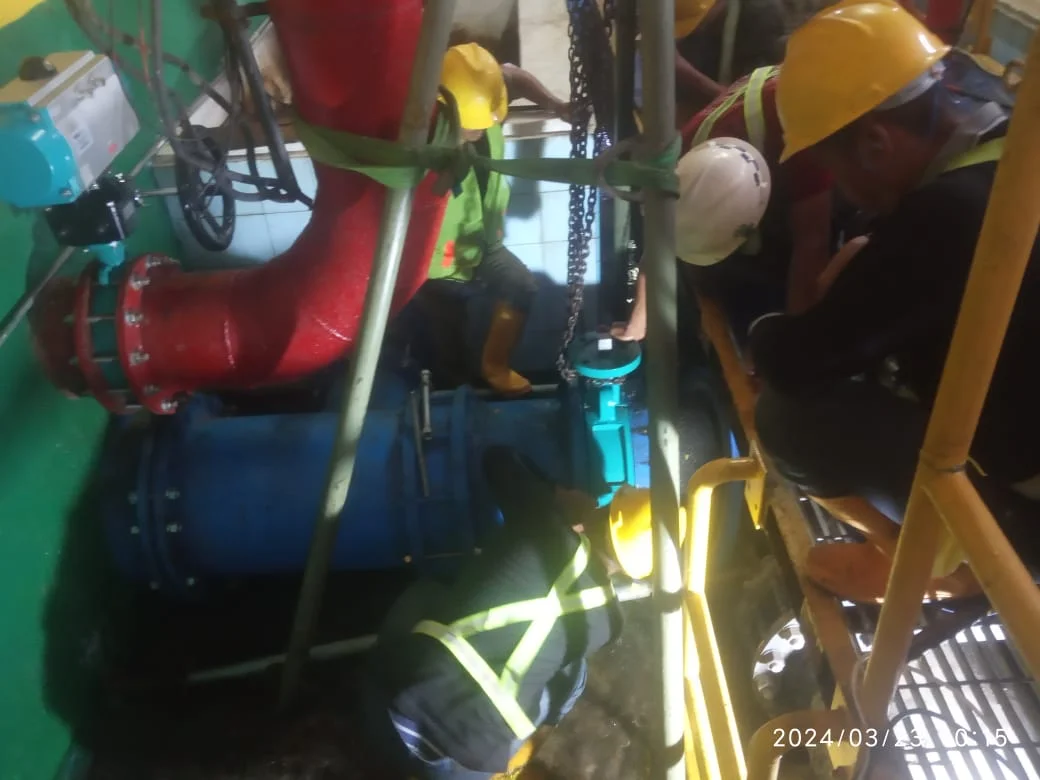

Project Cases

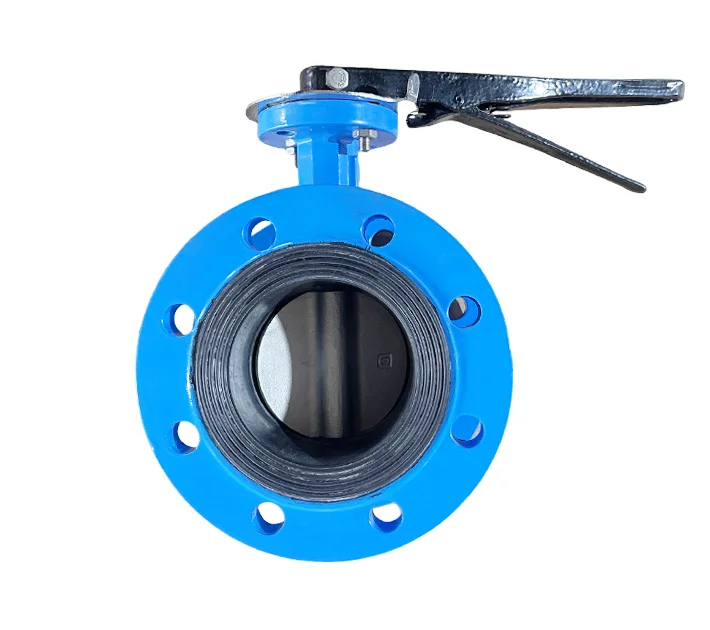

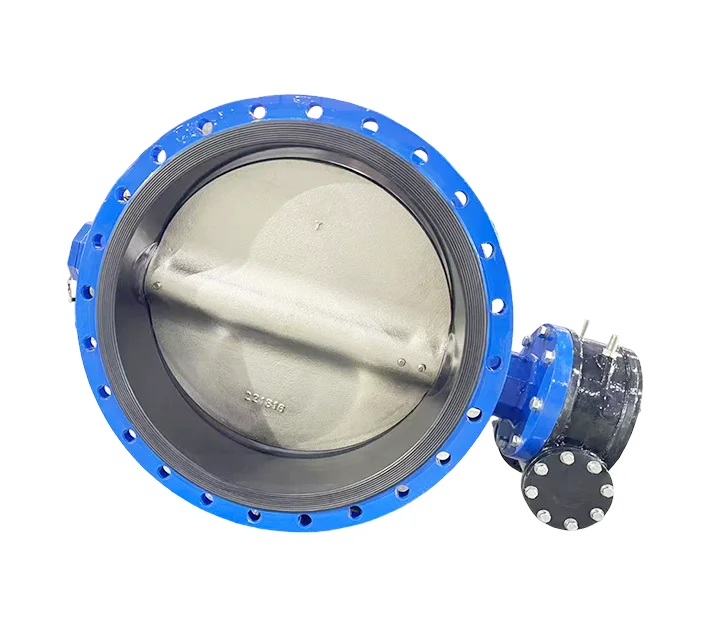

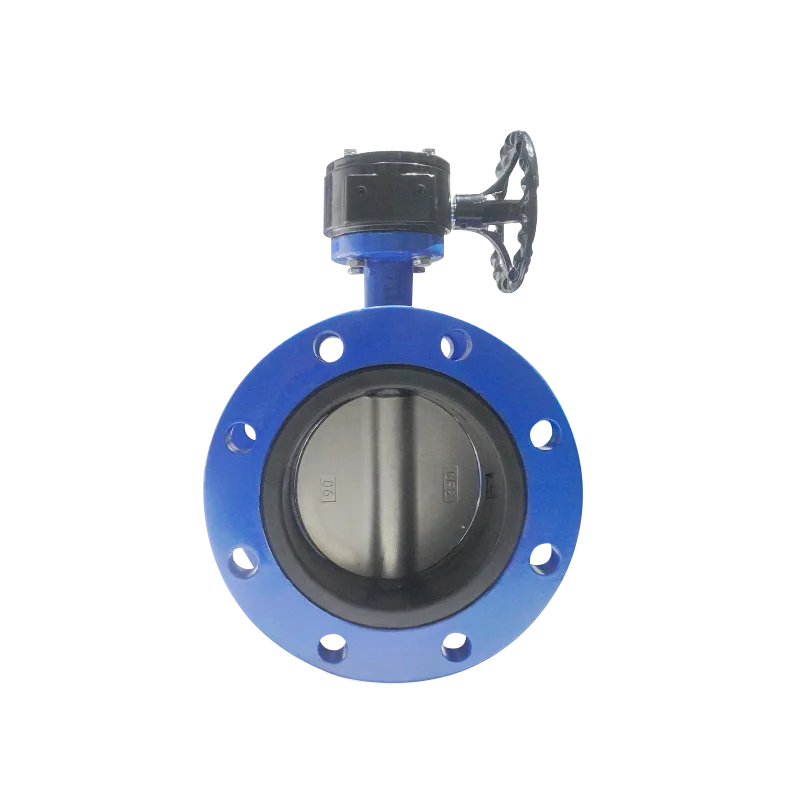

Flanged Butterfly Valve
The Flanged Butterfly Valve is designed with drilled flanges that align with standard pipe flanges, providing easy installation and removal. It offers robust performance for water treatment plants, industrial processes, and large-scale water distribution systems.
Technical Specifications
- Size Range: DN50 - DN1200
- Pressure Rating: PN10, PN16, PN25
- Material: Ductile iron, Cast iron
- Seat: EPDM, NBR, FPM
- Face-to-Face: DIN, ANSI, JIS standard
- Coating: Epoxy powder coating

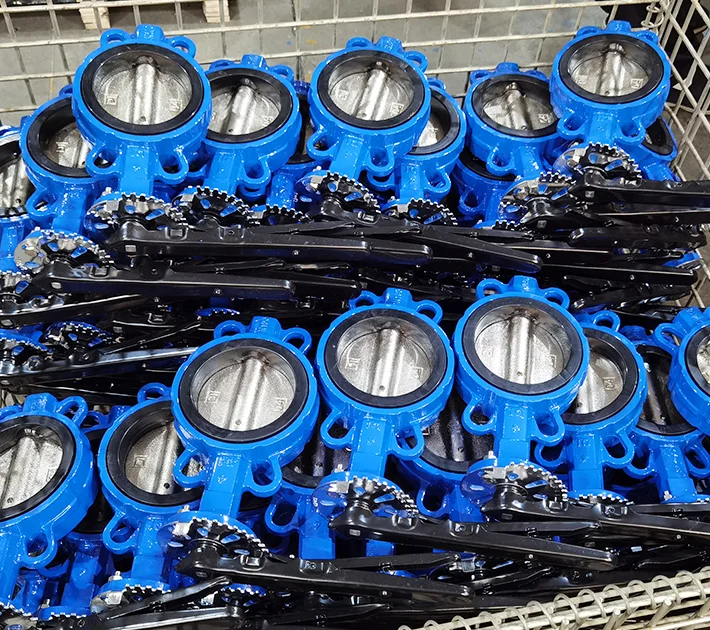

Project Cases
